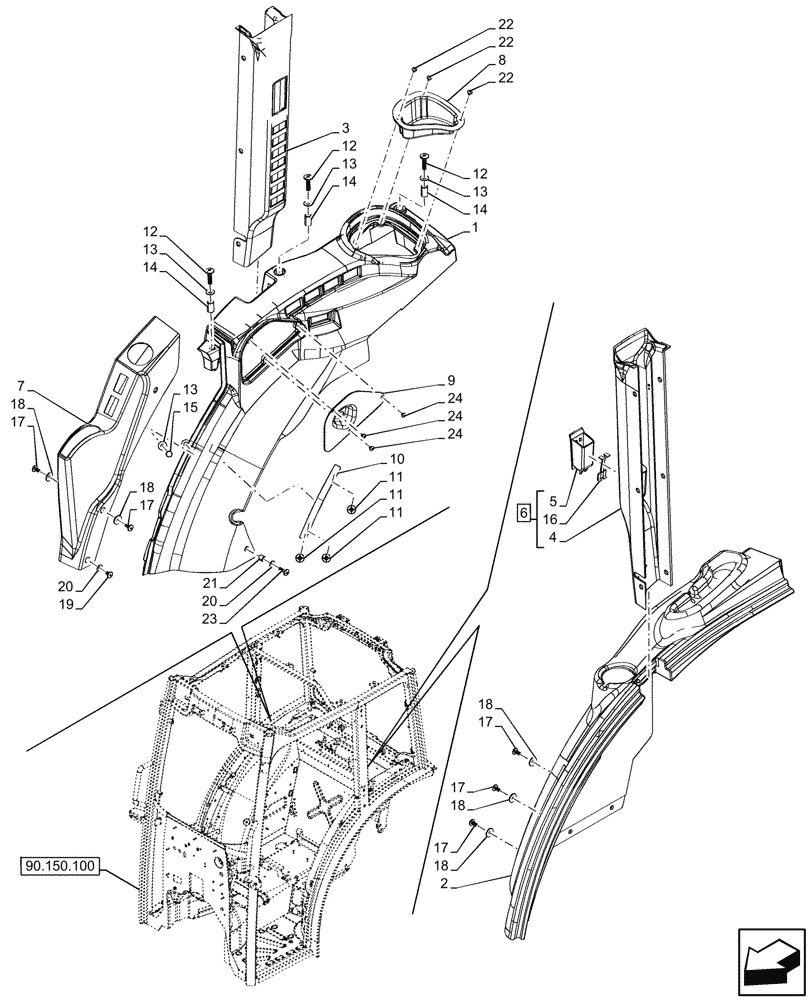

Запчасти Case IH FARMALL 80V (90.160.170) - VAR - 341490, 341491, 759022, 759023, 759024 - TRIM PANEL, PILLAR, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84485424

TRIM PANEL

RH

1шт.

2

47439125

TRIM PANEL

LH

1шт.

3

84154065

COVER

RH

1шт.

4

NSS

NOT SOLD SEPARAT

Pillar, Incl in 6

1шт.

5

5199950

ASH TRAY

1шт.

6

47123853

SOFT TRIM

Pillar, LH, ASSY, Incl 4, 5, 16

1шт.

7

84482001

COVER

1шт.

8

84481999

CONTAINER

1шт.

9

47467273

COVER

1шт.

10

44914720

SECTOR

1шт.

11

44914713

PLUG

3шт.

12

14780711

SCREW,Cross Rec Cheese Hd, M8 x 35mm, Cl 5.8

3шт.

13

12625221

WASHER,8.15mm ID x 20mm OD x 1mm Thk

4шт.

14

87726554

SPACER

3шт.

15

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

16

5196907

SPRING,33.5mm L x 15mm W x 0.5mm L

1шт.

17

5183681

SCREW,Cheese, M6 x 16mm

5шт.

18

47397098

WASHER,22mm ID x 6.5mm OD x 2mm Thk

5шт.

19

14064514

SCREW,Cheese Hd, M6 x 12mm, Cl 5.8

1шт.

20

14498821

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

2шт.

21

84496163

SPACER,8mm ID x 12mm OD x 10mm L

1шт.

22

14775214

SCREW,Cross Rec Cheese Hd, M4 x 8mm, Cl 5.8

3шт.

23

14778911

SCREW,Cross Rec Cheese Hd, M6 x 22mm, Cl 5.8

1шт.

24

47925756

SCREW,Cheese, M4 x 12mm

3шт.
