Запчасти Case IH FARMALL 80V (90.160.060) - VAR - 759031, 759033 - DASHBOARD, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

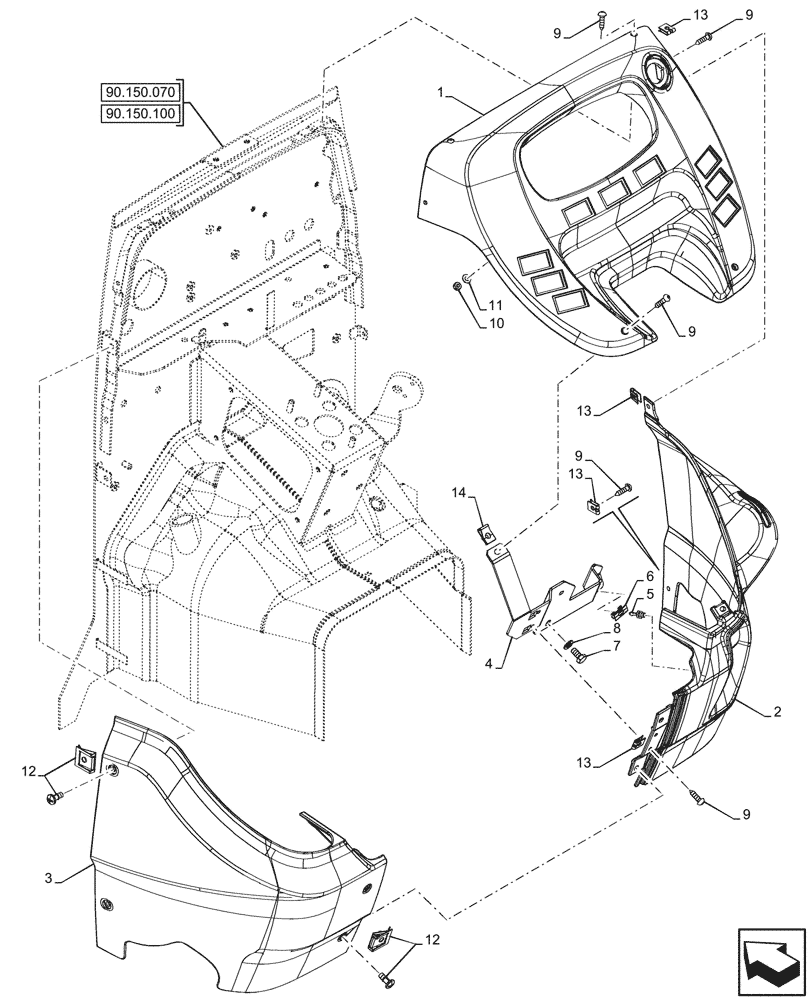

Схема запчастей Case IH FARMALL 80V - (90.160.060) - VAR - 759031, 759033 - DASHBOARD, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.070
8
10
3
13
9
4
7
2
5
13
9
13
12
12
14
11
6
9
1
9
9
13
90.150.100

Артикул

Название

Примечание

Количество

1

47933164

DASHBOARD

Upper, Wheat Color

1шт.

2

48001584

DASHBOARD

RH, Gray

1шт.

3

48012264

DASHBOARD

LH, Gray

1шт.

4

47876948

BRACKET

1шт.

5

47752683

PIN,5mm OD x 14mm L

1шт.

6

47752690

CLIP,30mm L x 10mm W

1шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

9шт.

10

10794011

NUT,M4, Cl 8

4шт.

11

12601079

WASHER,4.3mm ID x 9mm OD x 0.5mm Thk

4шт.

12

5174673

FASTENER,12mm OD

4шт.

13

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

7шт.

14

47410458

SPRING NUT,Standard, 4.8mm ID x 20.6mm L x 0.7mm Thk

2шт.

Выбрано товаров: 14
