Запчасти Case IH FARMALL 80V (90.156.020) - VAR - 759031, 759033 - WINDSHIELD, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

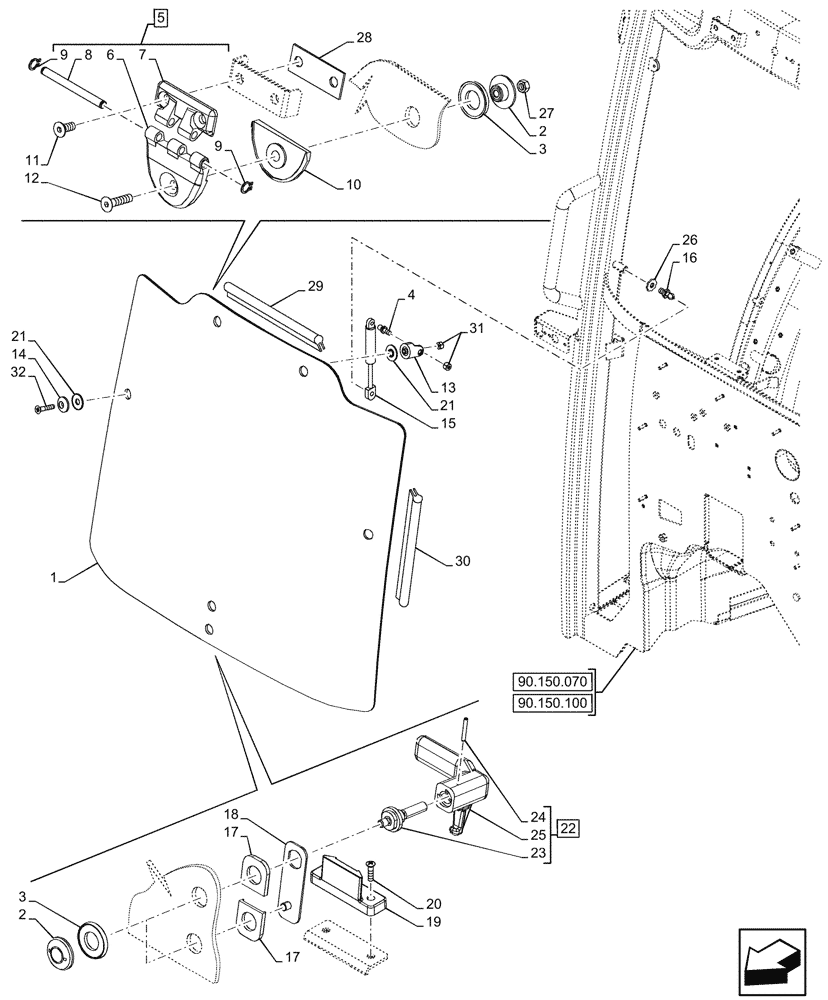

Схема запчастей Case IH FARMALL 80V - (90.156.020) - VAR - 759031, 759033 - WINDSHIELD, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.100
21
25
9
8
21
11
15
7
30
29
2
26
12
19
23
18
22
28
16
9
10
14
6
13
5
4
3
17
32
3
24
31
17
20
2
27
1
90.150.070

Артикул

Название

Примечание

Количество

1

47127547

CAB GLASS ASSY

Front

1шт.

2

5120540

KNOB

4шт.

3

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

4шт.

4

44910148

BALL STUD,M8 x 1.25

2шт.

5

5185205

HINGE

ASSY, Incl 6 (Qty 1), 7 (Qty 1), 8 (Qty 1), 9 (Qty 2)

2шт.

6

NSS

NOT SOLD SEPARAT

Hinge, Incl in 5

2шт.

7

NSS

NOT SOLD SEPARAT

Hinge, Incl in 5

2шт.

8

84155532

PIN,7.6mm OD x 87.8mm L

2шт.

9

11065676

SNAP RING,M8, Ext

4шт.

10

44911858

SEAL,11mm ID x 26mm OD x 8.5mm Thk

RH

1шт.

10

44911859

SEAL,11mm ID x 26mm OD x 8.5mm Thk

LH

1шт.

11

5182236

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

4шт.

12

5182238

HEX SOC SCREW,CSS, M8 x 1.25 x 35mm, Cl 8.8

2шт.

13

44910149

ARTICULATION

2шт.

14

44910150

SEALING WASHER,8.5mm ID x 39mm OD x 13mm Thk

2шт.

15

44910537

GAS STRUT

2шт.

16

83952214

BALL STUD,M8 x 29.5mm OAL

2шт.

17

5113395

SEAL, GLASS,Window, 30mm L

2шт.

18

5186866

PLATE

1шт.

19

87656439

STRIKER PLATE

1шт.

20

13311217

SCREW,Pozidriv Oval Hd, Csk, M5 x 20mm, Cl 5.8, Full Thd

2шт.

21

44910151

GASKET,15mm ID x 39mm OD x 4.5mm Thk

4шт.

22

87658582

HANDLE

ASSY, Incl 23 - 25

1шт.

23

5183752

PIN,26mm OD x 64.5mm L

1шт.

24

14159970

LOCK PIN,M2.5 x 20, Slotted

1шт.

25

NSS

NOT SOLD SEPARAT

Handle, Incl in 22

1шт.

26

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

2шт.

27

5182282

NUT,M8 x 1.25 x 10.6mm H, Cl 8

M8

2шт.

28

44911521

COVER PLATE

2шт.

29

87306874

SEAL,2896mm L

1шт.

30

5167998

SEAL

445 mm

2шт.

31

16104417

NUT,M8

4шт.

32

13304117

SCREW,Pozidriv Flat Hd, Csk, M8 x 40mm, Cl 5.8

2шт.

Выбрано товаров: 33
