Запчасти Case IH FARMALL 80V (90.154.020) - VAR - 759031, 759033 - DOOR HANDLE, GLASS, SEAL, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

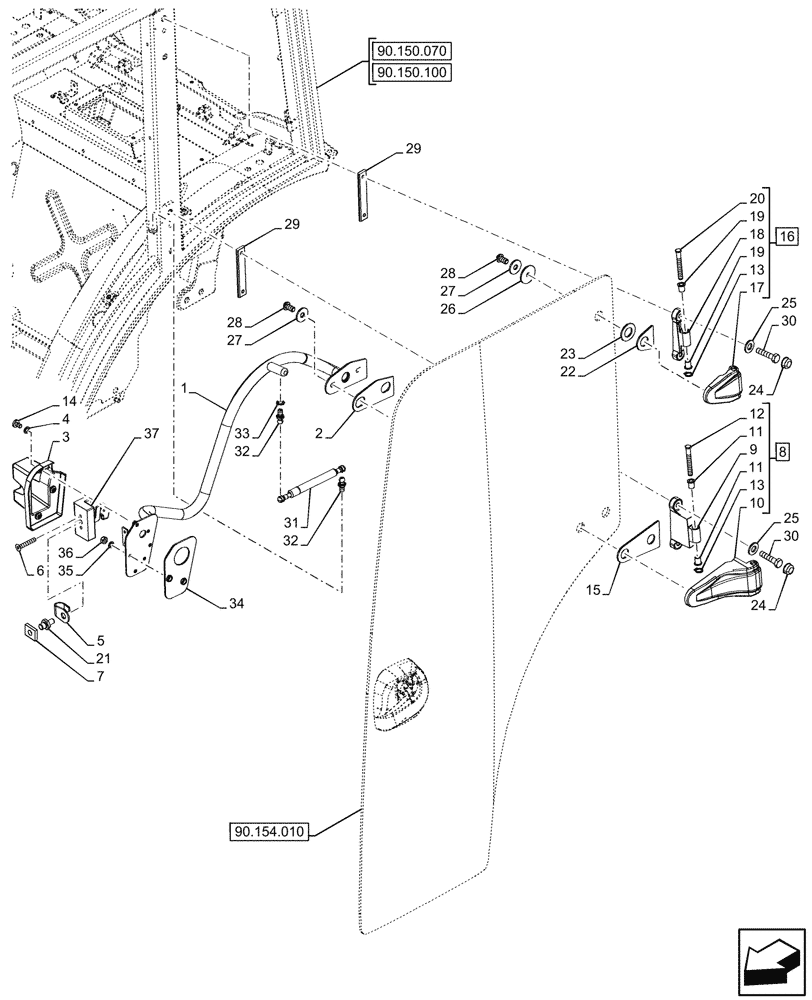

Схема запчастей Case IH FARMALL 80V - (90.154.020) - VAR - 759031, 759033 - DOOR HANDLE, GLASS, SEAL, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.100
11
13
19
34
36
21
7
29
11
18
31
28
17
9
1
24
4
19
13
12
2
5
30
28
26
16
29
30
25
25
3
15
23
37
32
8
35
20
14
27
27
10
22
32
6
33
24
90.154.010
90.150.070

Артикул

Название

Примечание

Количество

1

84481990

DOOR HANDLE

RH

1шт.

1

87353608

HANDLE

LH

1шт.

2

87352378

GASKET,3mm Thk

1шт.

3

44910374

SHIELD

RH

1шт.

3

44910375

GUARD

LH

1шт.

4

12648278

WASHER,6.15mm ID x 10mm OD x 1mm Thk

3шт.

5

82019370

COVER

1шт.

6

14441724

SCREW,Flat Csk Hd, M6 x 35mm, Cl 8.8

2шт.

7

83994378

NUT,M12 x 1

1шт.

8

87301778

HINGE

ASSY, RH, Incl 9 - 12, 13 (Qty 1)

1шт.

8

87301780

HINGE

ASSY, LH, Incl 9 - 12, 13 (Qty 1)

1шт.

9

NSS

NOT SOLD SEPARAT

Hinge, Incl in 8

1шт.

10

NSS

NOT SOLD SEPARAT

Cover Hinge RH, Incl in 8

1шт.

10

NSS

NOT SOLD SEPARAT

Cover Hinge LH, Incl in 8

1шт.

11

NSS

NOT SOLD SEPARAT

Bush, Incl in 8

2шт.

12

NSS

NOT SOLD SEPARAT

Pin, Incl in 8

1шт.

13

11065971

LOCKING RING,10mm OD

2шт.

14

13275914

SCREW,Pozidriv Pan Hd, M6 x 10mm, Cl 5.8, Full Thd

3шт.

15

87352385

GASKET,3mm Thk

1шт.

16

87301779

HINGE

ASSY, RH, Incl 17 - 20, 21 (Qty 1)

1шт.

16

87301781

HINGE

ASSY, LH, Incl 13 (Qty 1), 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

Cover Hinge, RH, Incl in 16

1шт.

17

NSS

NOT SOLD SEPARAT

Cover Hinge, LH, Incl in 16

1шт.

18

NSS

NOT SOLD SEPARAT

Upper Hinge, Incl in 16

1шт.

19

NSS

NOT SOLD SEPARAT

Bush, Incl in 16

2шт.

20

NSS

NOT SOLD SEPARAT

Hinge Pin, Incl in 16

1шт.

21

87572559

LATCH

1шт.

22

87352398

GASKET,3mm Thk

1шт.

23

87352397

GASKET,24.5mm ID x 45mm OD x 3mm Thk

1шт.

24

15811487

CAP,13mm x 8.5mm

4шт.

25

14496534

WASHER,M8

4шт.

26

87352400

WASHER,10mm ID x 46mm OD x 3mm Thk

1шт.

27

13578378

WASHER,8.15mm ID x 24mm OD x 2mm Thk

3шт.

28

87352614

SCREW,Sl Pan Hd, M8 x 15mm, Cl 10.9

3шт.

29

87352376

COVER PLATE

2шт.

30

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

31

87352613

GAS STRUT,285mm Extended, 190mm Compressed

1шт.

32

83952214

BALL STUD,M8 x 29.5mm OAL

2шт.

33

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

1шт.

34

44910534

SEAL,2x11mm ID x 47mm OD x 3mm Thk

RH

1шт.

34

44910535

SEAL,2x11mm ID x 47mm OD x 3mm Thk

LH

1шт.

35

12648221

WASHER,6.15mm ID x 10mm OD x 1mm Thk

3шт.

36

15896214

NUT,M6, Cl 8

3шт.

37

44910472

LOCK

RH

1шт.

37

44910473

LOCK

LH

1шт.

Выбрано товаров: 45
