Запчасти Case IH FARMALL 80V (90.150.040) - VAR - 759007 - FLOOR, PARKING LOCK, PLATE, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

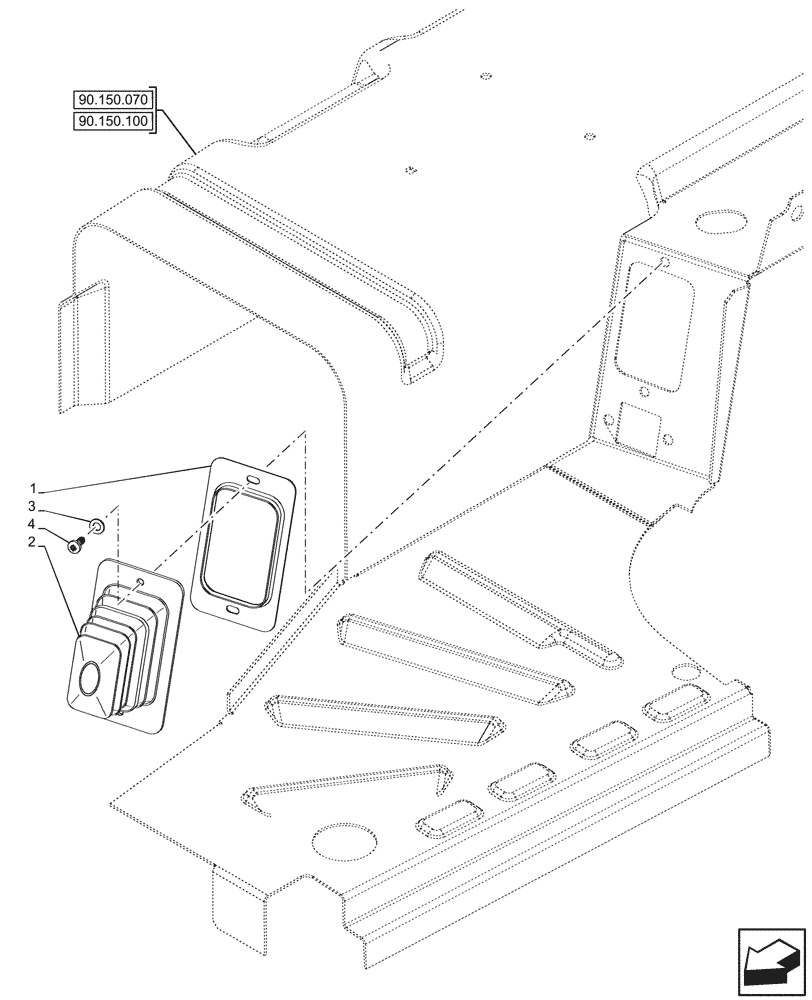

Схема запчастей Case IH FARMALL 80V - (90.150.040) - VAR - 759007 - FLOOR, PARKING LOCK, PLATE, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.070
4
1
2
3
90.150.100

Артикул

Название

Примечание

Количество

1

5190510

FRAME

1шт.

1

5188429

CAPPING

1шт.

2

87528777

BELLOWS

1шт.

3

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

4

13283714

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd, Cone Pt

2шт.

Выбрано товаров: 5
