Запчасти Case IH FARMALL 80V (90.120.100) - VAR - 335859 - SEAT, MECHANICAL, SUSPENSION, FABRIC, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

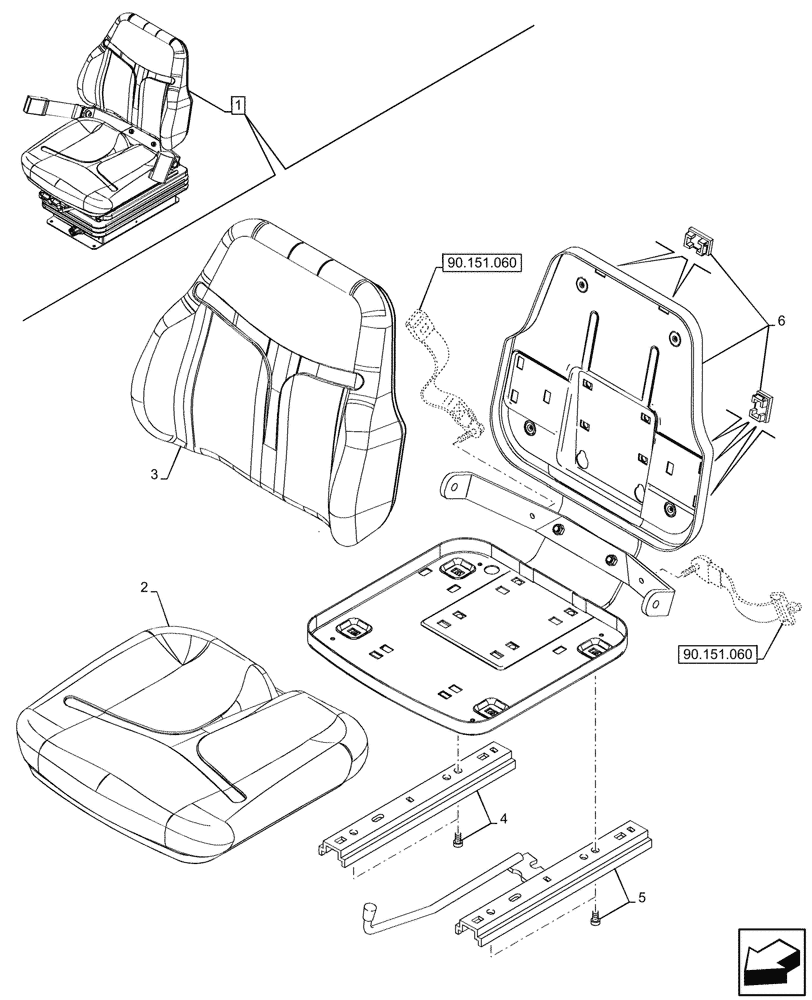

Схема запчастей Case IH FARMALL 80V - (90.120.100) - VAR - 335859 - SEAT, MECHANICAL, SUSPENSION, FABRIC, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
5
1
4
6
2
90.151.060
90.151.060

Артикул

Название

Примечание

Количество

1

47916755

DRIVER SEAT

Fabric Case BK5425, ASSY, Incl 2 - 6

1шт.

See also Seat Components in Figure 90.151.060

1шт.

2

87753609

SEAT CUSHION

1шт.

3

87753610

SEAT CUSHION

1шт.

4

47136924

GUIDE

1шт.

5

47130725

GUIDE

1шт.

6

87752799

DRIVER SEAT

1шт.
