Запчасти Case IH FARMALL 80V (90.118.050) - MIRROR, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

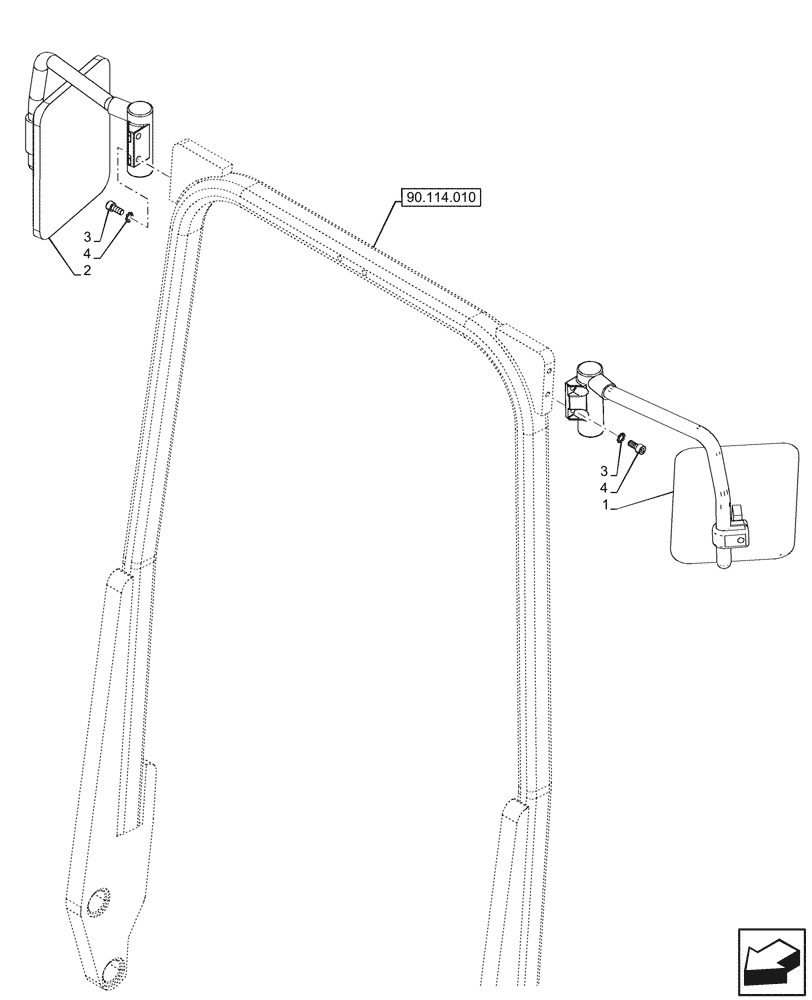

Схема запчастей Case IH FARMALL 80V - (90.118.050) - MIRROR, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.010
2
3
1
3
4
4

Артикул

Название

Примечание

Количество

1

5194636

REAR VIEW MIRROR

LH

1шт.

2

5194637

REAR VIEW MIRROR

RH

1шт.

3

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

4шт.

4

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 4
