Запчасти Case IH FARMALL 80V (90.108.170) - WARNING DECAL, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

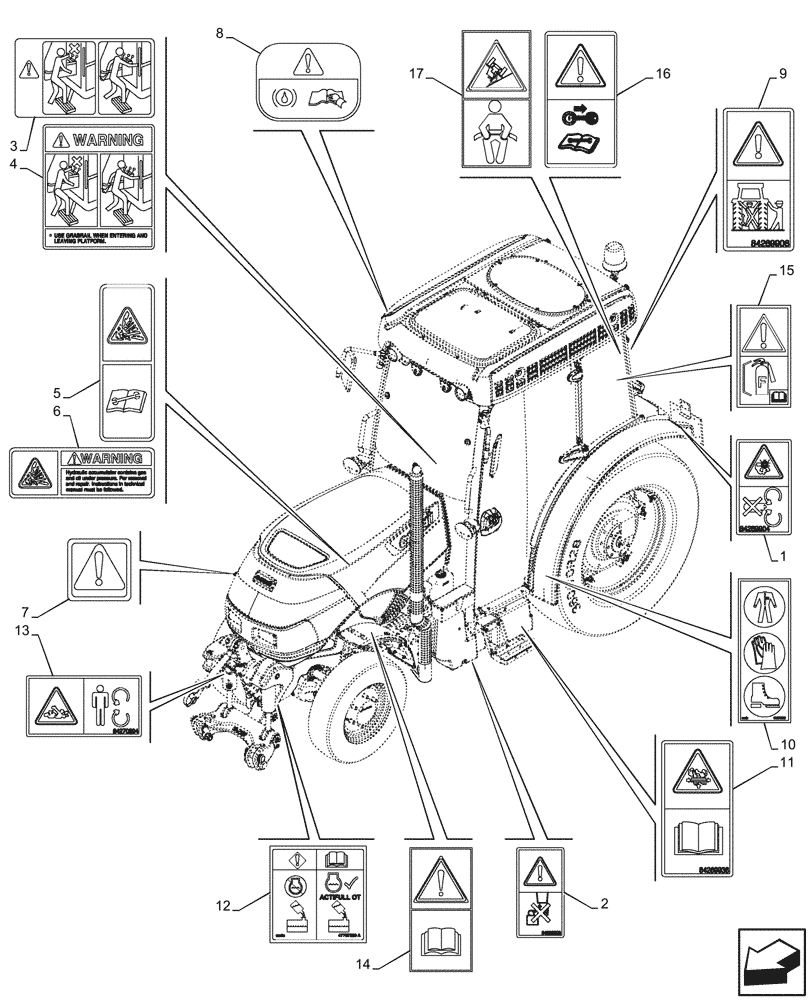

Схема запчастей Case IH FARMALL 80V - (90.108.170) - WARNING DECAL, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
16
5
8
13
1
4
6
14
10
3
9
17
12
15
7
2

Артикул

Название

Примечание

Количество

1

84269904

DECAL

Hand Entangle Hazard

2шт.

2

84269908

DECAL

Warning Operator

2шт.

3

81871702

DECAL

Vehicle Operating Warning Instruction, ISO

1шт.

4

82030509

DECAL

Vehicle Operating Warning Instruction, NA

1шт.

5

82029751

DECAL

Hydraulic, ISO

1шт.

6

82029752

DECAL

Hydraulic, NA

1шт.

7

83946774

DECAL

Warning

1шт.

8

82010204

DECAL

Brake Oil Instruction

1шт.

9

84269906

DECAL

External Warning

2шт.

10

84275352

DECAL

Protective Clothing

1шт.

11

84269938

DECAL

High Pressure Hazard, ISO

2шт.

12

47757330

DECAL,50mm x 50mm H

Coolant

2шт.

13

84270894

DECAL

Entanglement

1шт.

14

84270888

DECAL

General Hazard

2шт.

15

84269927

DECAL

Fire Extinguisher

1шт.

16

84269928

DECAL

Key Start

1шт.

17

84289915

Warning

1шт.

Выбрано товаров: 17
