(37.120.170) - VAR - 743536 - REAR, 3 POINT HITCH, LINES

Запчасти Case IH FARMALL 80V (37.120.170) - VAR - 743536 - REAR, 3 POINT HITCH, LINES (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

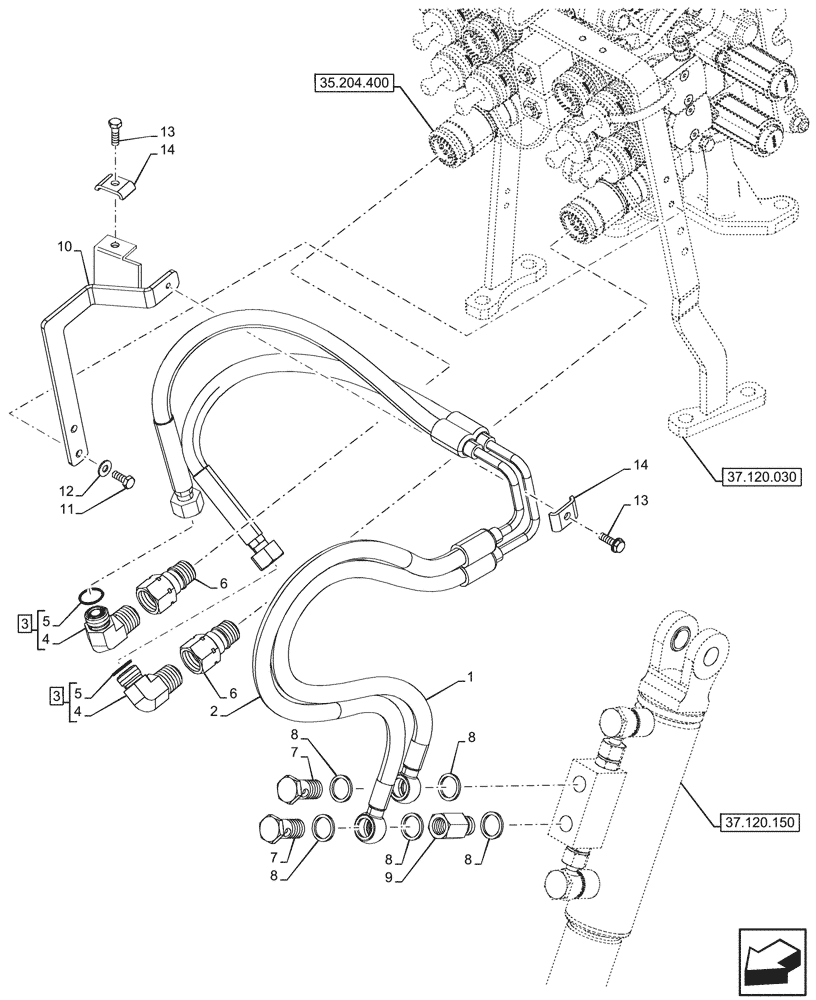

Схема запчастей Case IH FARMALL 80V - (37.120.170) - VAR - 743536 - REAR, 3 POINT HITCH, LINES (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.120.030
13
4
14
2
1
8
5
13
11
8
6
8
7
9
3
4
3
5
7
6
12
8
14
10
8
37.120.150
35.204.400
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48034166

PIPE

Lower

1шт.

2

47968535

PIPE

Raise

1шт.

3

84533151

ELBOW,1/2-14

2шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

1шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

5101741

QUICK MALE COUPLING

2шт.

7

5179496

BANJO BOLT,Hex, M9 x 39mm

2шт.

8

84185636

SEAL,14.76mm ID x 23.8mm OD x 3mm Thk

5шт.

9

5179492

PROP,3/8"

1шт.

10

48034162

BRACKET

1шт.

11

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

12

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

2шт.

13

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

14

5193550

CLAMP,6.5mm ID

2шт.
