Запчасти Case IH FARMALL 80V (25.102.260) - VAR - 744473 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, HYDRAULIC LINE (25) - FRONT AXLE SYSTEM

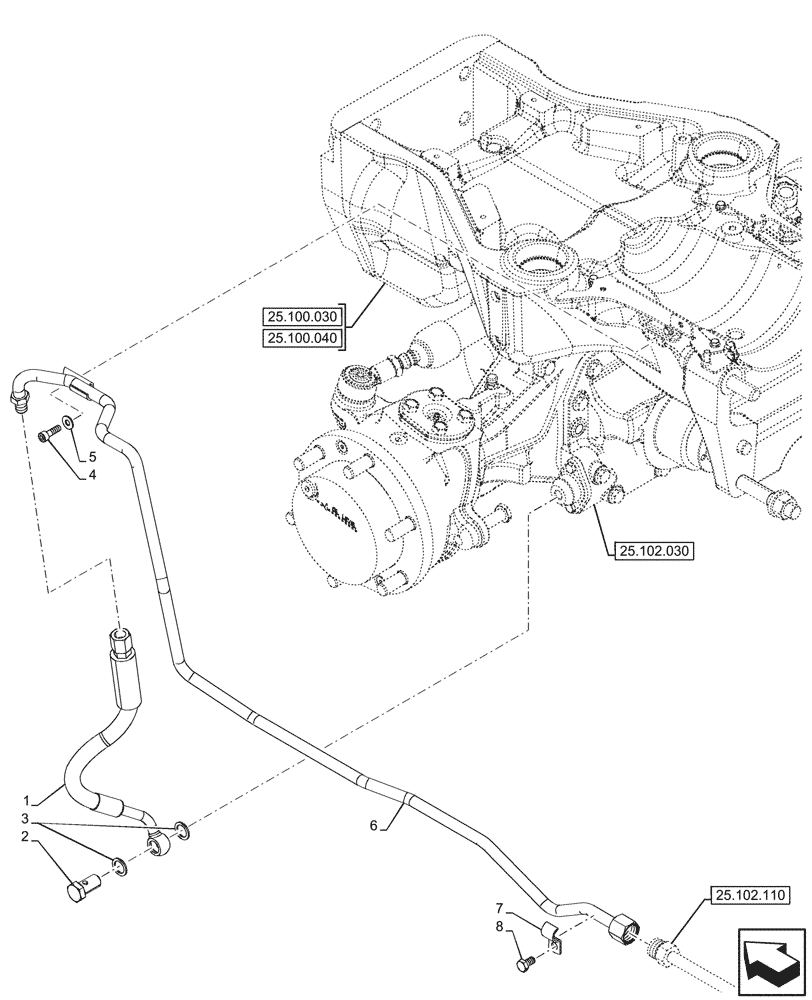

Схема запчастей Case IH FARMALL 80V - (25.102.260) - VAR - 744473 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, HYDRAULIC LINE (25) - FRONT AXLE SYSTEM
25.102.110
6
5
3
2
25.100.040
1
8
25.102.030
4
25.100.030
7

Артикул

Название

Примечание

Количество

1

5189840

FLEXIBLE HOSE

Differential Lock, 8mm ID x 410mm L

1шт.

2

10184311

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

3

10280060

SEAL,M14.2 x 20 x 1.5

2шт.

4

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

1шт.

5

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

6

47684922

PIPE

1шт.

7

10113301

RETAINER COLLAR,12mm, 7mm Bolt Hole, J Type

1шт.

8

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 8
