Запчасти Case IH FARMALL 80V (25.100.080) - VAR - 743515 - 2WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, HOUSING (25) - FRONT AXLE SYSTEM

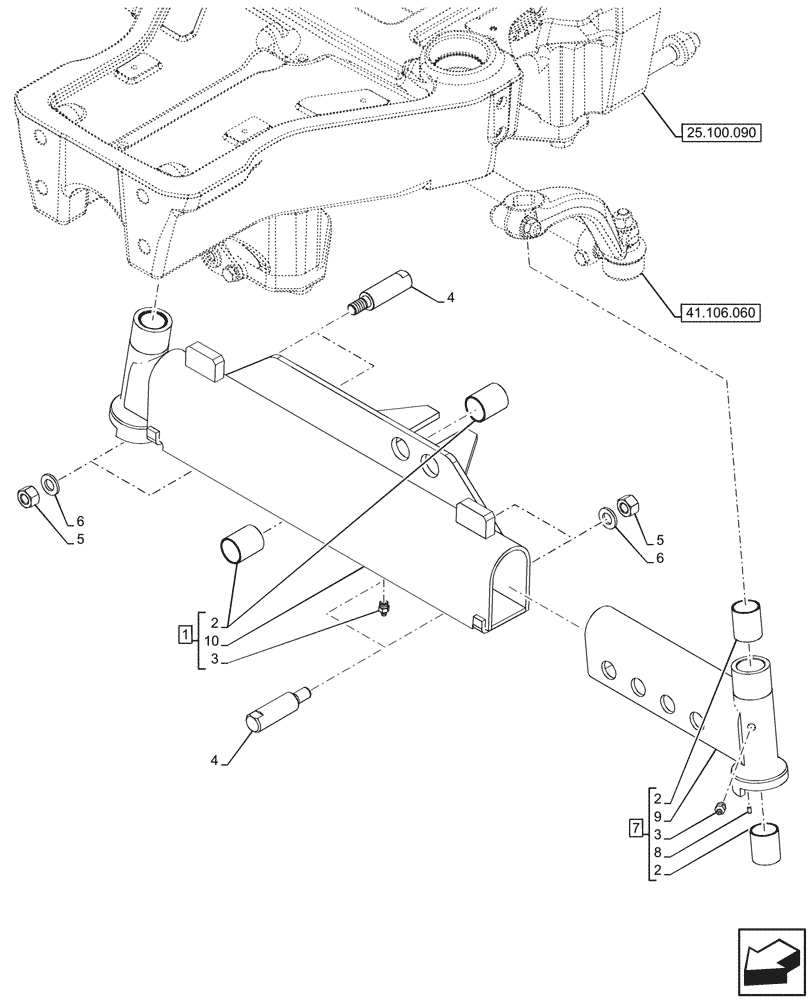

Схема запчастей Case IH FARMALL 80V - (25.100.080) - VAR - 743515 - 2WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, HOUSING (25) - FRONT AXLE SYSTEM
41.106.060
2
4
5
8
3
7
1
10
2
9
2
6
6
3
5
4
25.100.090

Артикул

Название

Примечание

Количество

1

87743988

BODY

ASSY, Incl 2 (Qty 2), 3 (Qty 1), 10

1шт.

2

5126260

BUSHING,30mm ID x 40mm L

4шт.

3

13407211

LUBE NIPPLE,M10 x 1

2шт.

4

5126270

PIN,M14 x 1.5, 24mm OD x 94mm L

4шт.

5

10790411

NUT

M14 x 1.5

4шт.

6

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

4шт.

7

47135507

TRACK ROD END ASSY

ASSY, Incl 2 (Qty 2), 3 (Qty 1), 8, 9

1шт.

8

10486110

DOWEL,M4 x 8

1шт.

9

NSS

NOT SOLD SEPARAT

End Front Axle, Incl in 7

1шт.

10

87743989

BODY

1шт.

Выбрано товаров: 10
