Запчасти Case IH FARMALL 80V (18.104.120) - VAR - 743522, 759019 - PTO CLUTCH, CONTROLS, LINE, W/O MID MOUNT VALVES (18) - CLUTCH

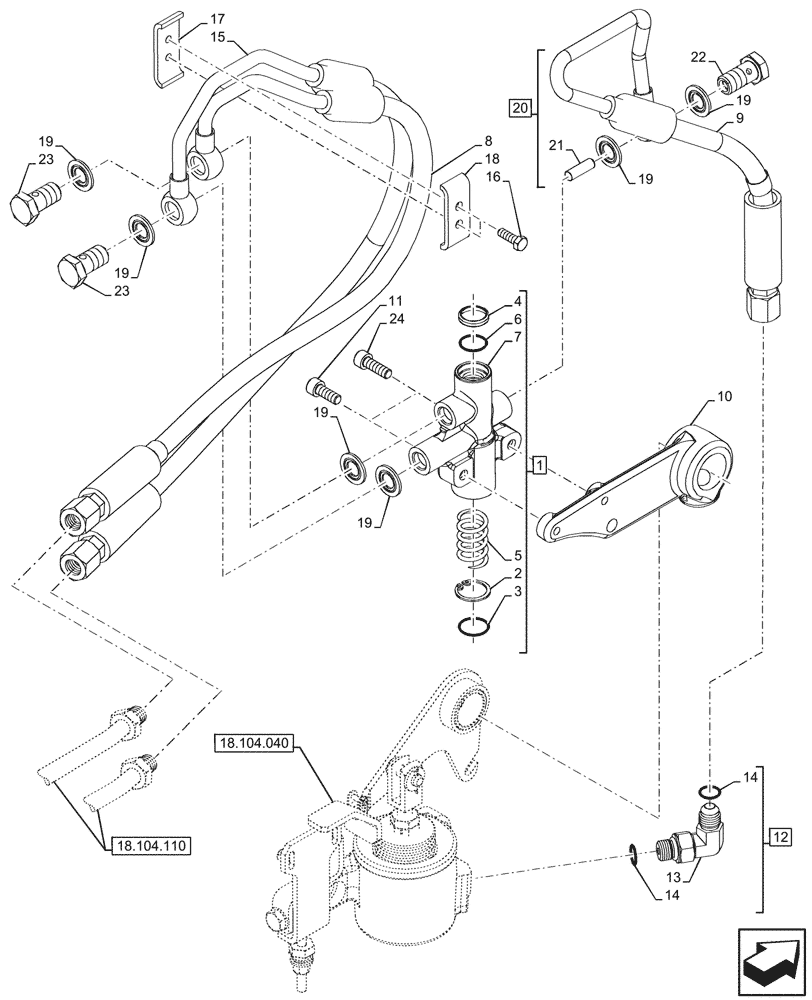

Схема запчастей Case IH FARMALL 80V - (18.104.120) - VAR - 743522, 759019 - PTO CLUTCH, CONTROLS, LINE, W/O MID MOUNT VALVES (18) - CLUTCH
18.104.110
22
21
13
12
5
10
6
3
16
23
14
24
8
7
19
9
19
23
4
19
14
2
19
18
19
15
17
1
11
19
20
18.104.040

Артикул

Название

Примечание

Количество

1

5185025

HYDRAULIC VALVE

ASSY, Incl 2 - 7

1шт.

2

11057876

SNAP RING,M20, Int

1шт.

3

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

4

5114359

SCRAPER RING,Locking, 12mm ID x 18mm OD x 5mm Thk

1шт.

5

5188876

SPRING,Compression, 18.5mm OD x 30.5mm L

1шт.

6

5192732

O-RING,11.91mm ID

1шт.

7

NSS

NOT SOLD SEPARAT

Control Valve Body, Incl in 1

1шт.

8

47477411

PRESSURE PIPE

1шт.

9

5183774

FLEXIBLE HOSE,12.2mm ID x 232mm L

1шт.

10

5183637

LEVER

1шт.

11

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

1шт.

12

87616449

HYD CONNECTOR

ASSY, Incl 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 12

1шт.

14

14437685

O-RING,9.30mm ID x 2.40mm

2шт.

15

47477465

PRESSURE PIPE

1шт.

16

10977811

SCREW,M5 x 15mm L

2шт.

17

5184084

RETAINER COLLAR,2x5mm ID x 40mm L

1шт.

18

5184304

BRACKET

1шт.

19

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

6шт.

20

84196125

BANJO BOLT,Hex, M12 x 1.5

ASSY, Incl 21, 22

1шт.

21

47126655

FILTER STRAINER

1шт.

22

NSS

NOT SOLD SEPARAT

Banjo, Incl in 20

1шт.

23

10185011

BANJO BOLT,M12 x 1.25 x 23mm

2шт.

24

14305424

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 24
