Запчасти Case IH FARMALL 80V (10.501.040) - VAR - 342353, 342354, 743915 - EXHAUST, MUFFLER, PROTECTION, W/O MID MOUNT VALVES, CAB (10) - ENGINE

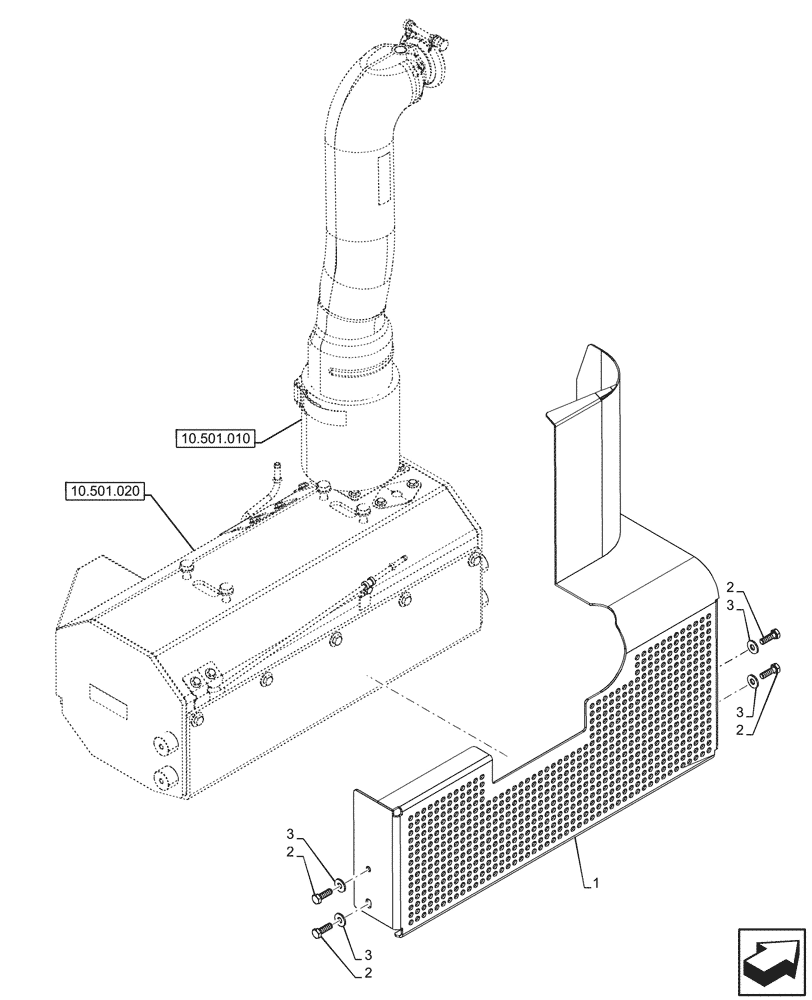

Схема запчастей Case IH FARMALL 80V - (10.501.040) - VAR - 342353, 342354, 743915 - EXHAUST, MUFFLER, PROTECTION, W/O MID MOUNT VALVES, CAB (10) - ENGINE
10.501.020
2
2
3
1
2
3
3
3
2
10.501.010

Артикул

Название

Примечание

Количество

1

48008085

COVER

1шт.

2

412247

BOLT,Hex, M8 x 25mm, Cl 8.8

4шт.

3

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

4шт.

Выбрано товаров: 3
