Запчасти Case IH FARMALL 80V (90.116.160) - VAR - 744478 - REAR FENDER EXTENSION, WRAP AROUND TYPE, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

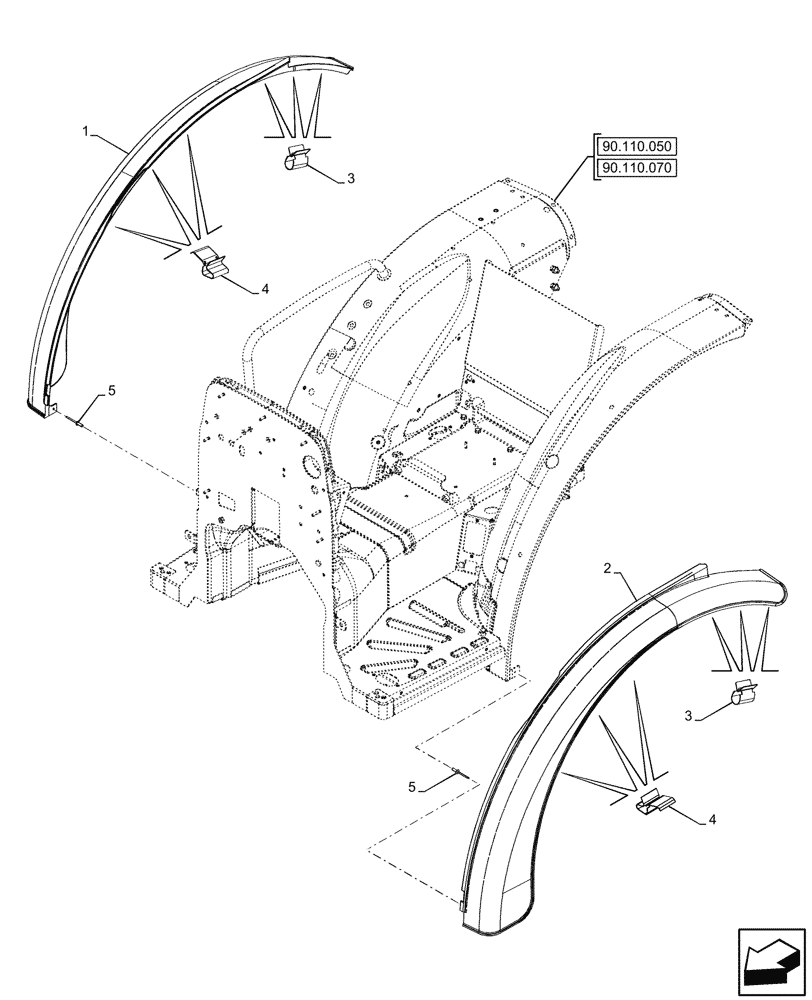

Схема запчастей Case IH FARMALL 80V - (90.116.160) - VAR - 744478 - REAR FENDER EXTENSION, WRAP AROUND TYPE, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.070
3
1
2
4
4
5
5
3
90.110.050

Артикул

Название

Примечание

Количество

1

47802515

FENDER EXTENSION

RH

1шт.

2

47802512

FENDER EXTENSION

LH

1шт.

3

82010838

SPRING CLIP,0.5mm Thk

6шт.

4

87636427

SPRING

14шт.

5

5186642

RIVET,Pop, 4.85mm OD x 14.5mm L

2шт.

Выбрано товаров: 5
