Запчасти Case IH FARMALL 80V (90.110.350) - VAR - 744478, 759036 - SHIELD, REAR FENDER, RH, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

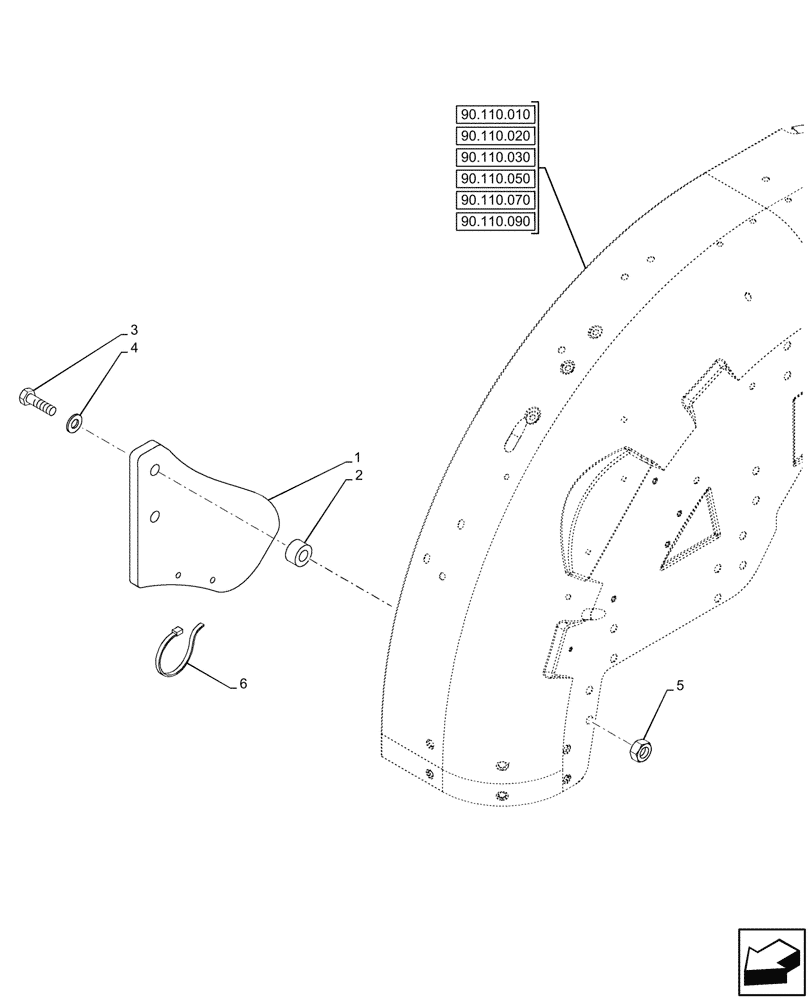

Схема запчастей Case IH FARMALL 80V - (90.110.350) - VAR - 744478, 759036 - SHIELD, REAR FENDER, RH, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.020
5
6
3
1
4
2
90.110.070
90.110.010
90.110.030
90.110.050
90.110.090

Артикул

Название

Примечание

Количество

1

48040614

PLATE

1шт.

2

5117562

SPACER,12.5mm ID x 25mm OD x 6mm L

2шт.

3

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

5

12164721

NUT,M10 x 1.25, Cl 10

2шт.

6

14560187

COLLAR,199mm L

1шт.

Выбрано товаров: 6
