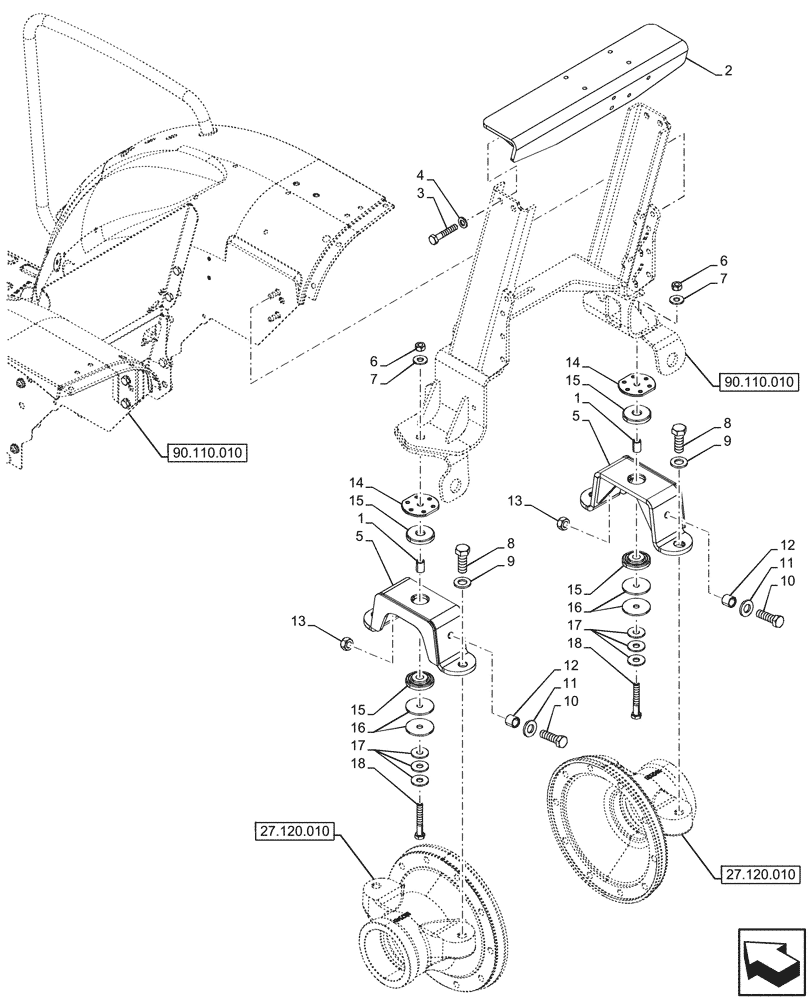

Запчасти Case IH FARMALL 80V (90.110.160) - VAR - 342270, 342271, 759028, 759029 - PLATFORM, SUPPORT, REAR, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

5187859

SPACER,12.2mm ID x 17mm OD x 25mm L

2шт.

2

47876455

BRACKET

Black

1шт.

3

15541121

SCREW,Hex, M12 x 1.25 x 65mm, Cl 8.8

4шт.

4

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

5

47481688

BRACKET

2шт.

6

16101521

NUT,M12 x 1.25, Cl 10

2шт.

7

11190879

BELLEVILLE WASHER,M12 Bolt Size x 30mm OD

2шт.

8

15984334

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

4шт.

9

11191679

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.

10

15981034

BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9

2шт.

11

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

2шт.

12

47868703

BUSHING,17mm ID x 23mm OD x 20mm L

2шт.

13

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

2шт.

14

47868689

PLATE

2шт.

15

5187860

LOCKING RING,16.5mm ID x 60mm OD x 15mm Thk

4шт.

16

47501799

WASHER,12.5mm ID x 60mm OD x 3.5mm Thk

4шт.

17

87016607

WASHER,13.5mm ID x 37mm OD x 3mm Thk

6шт.

18

47916368

SCREW,M12 x 1.25 x 80mm L, Cl 12.9

2шт.
