Запчасти Case IH FARMALL 80V (37.120.140) - VAR - 758895 - REAR, 3 POINT HITCH, ADJUSTMENT ROD, RH, COMPONENTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

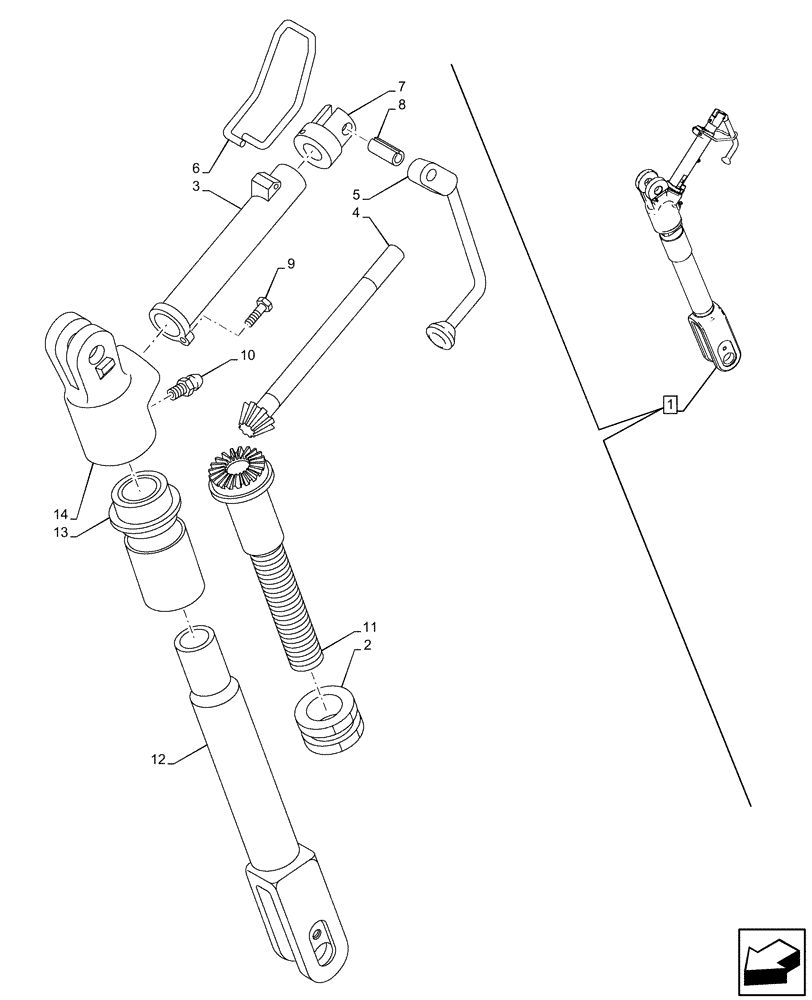

Схема запчастей Case IH FARMALL 80V - (37.120.140) - VAR - 758895 - REAR, 3 POINT HITCH, ADJUSTMENT ROD, RH, COMPONENTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
6
8
5
13
2
11
14
12
3
7
4
10
9
1

Артикул

Название

Примечание

Количество

1

84401603

LIFTING ROD

ASSY, Incl 2 - 14

1шт.

2

26800800

BALL BEARING

1шт.

3

84401544

RIGID TUBE

1шт.

4

5194816

SPINDLE

1шт.

5

5190455

CRANKED HANDLE

1шт.

6

4950756

SPRING CLIP,93mm L x 4mm Thk

1шт.

7

44017900

CLEVIS,25mm OD x 12mm

1шт.

8

14601071

LOCK PIN,M5 x 24, Slotted

M5 x 24, Slotted

2шт.

9

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

10

13407211

LUBE NIPPLE,M10 x 1

2шт.

11

5194819

SHAFT

1шт.

12

NSS

NOT SOLD SEPARAT

Lower Part Assy, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Box Assy, Incl in 1

1шт.

14

5194115

FORK

1шт.

Выбрано товаров: 14
