Запчасти Case IH FARMALL 80V (37.110.130) - VAR - 342377, 759013 - REAR, HYDRAULIC LIFT, HOUSING, ARM, W/ LIFT-O-MATIC PLUS, W/O CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

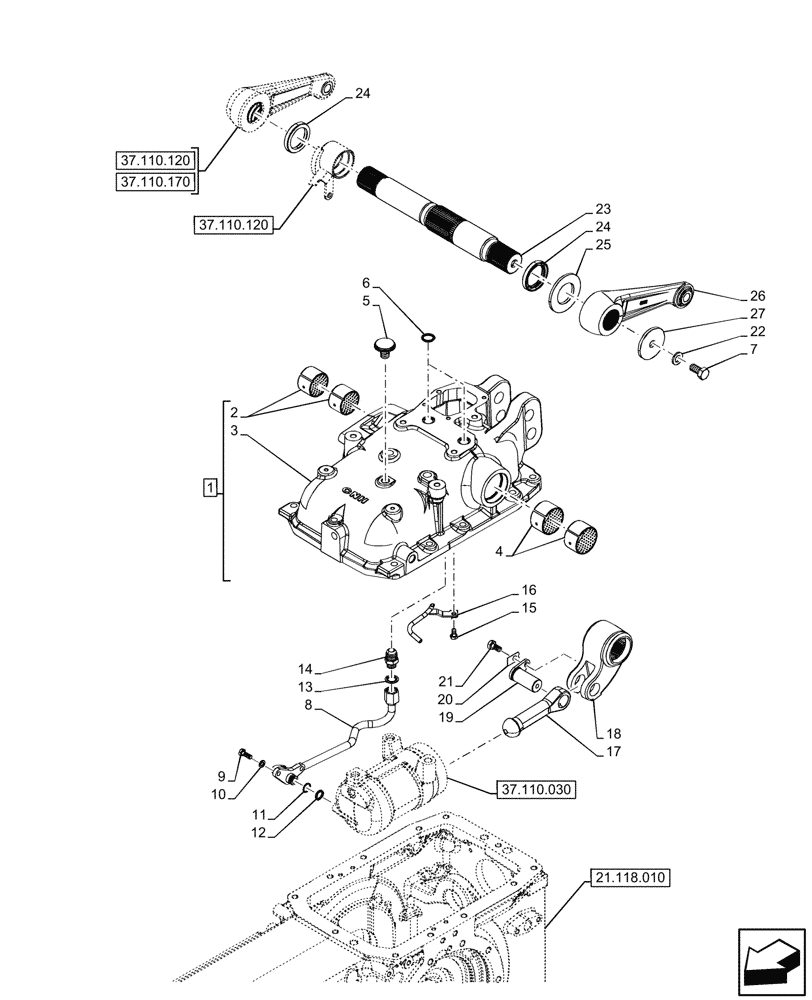

Схема запчастей Case IH FARMALL 80V - (37.110.130) - VAR - 342377, 759013 - REAR, HYDRAULIC LIFT, HOUSING, ARM, W/ LIFT-O-MATIC PLUS, W/O CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.110.120
18
3
1
14
24
13
10
27
17
25
20
12
23
37.110.170
24
9
15
6
26
7
22
11
5
21
2
19
4
8
16
37.110.030
21.118.010
37.110.120

Артикул

Название

Примечание

Количество

1

87346203

BODY

ASSY, Incl 2 - 4

1шт.

2

5181871

BUSHING,47.98mm ID x 53.03mm OD x 35mm L

RH

2шт.

3

87343538

BODY

1шт.

4

5181870

BUSHING,55.1mm ID x 60.03mm OD x 35mm L

LH

2шт.

5

83925022

BREATHER,.375-18 NPT

1шт.

6

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

2шт.

7

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

1шт.

8

47130049

RIGID TUBE

from Distributor to Lift Cylinder

1шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

10

10571771

LOCK WASHER,M8

2шт.

11

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

12

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

13

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

1шт.

14

5158806

HYD CONNECTOR,7/8-14 UNF, M18 x 1.5

1шт.

15

5183493

RIGID TUBE

Lubrification

1шт.

16

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

17

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

18

5176633

ARM

1шт.

19

5176612

PIN,60mm L

1шт.

20

14198810

LOCKING PLATE,M10

1шт.

21

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

22

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

1шт.

23

5176508

CONTROL SHAFT,50/43.5mm ID x 54.4/46.5mm OD x 428mm L, 42/60T

1шт.

24

5125650

OIL SEAL,48mm ID x 65mm OD x 10mm Thk

2шт.

25

5125649

SPACER,47mm ID x 85mm OD x 6mm L

1шт.

26

5187370

LIFT ARM

LH

1шт.

27

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

1шт.

Выбрано товаров: 27
