Запчасти Case IH FARMALL 80V (31.116.040) - VAR - 330817 - PTO 540/540E/1000 RPM, SHAFT, TRANSMISSION, GEAR (31) - IMPLEMENT POWER TAKE OFF

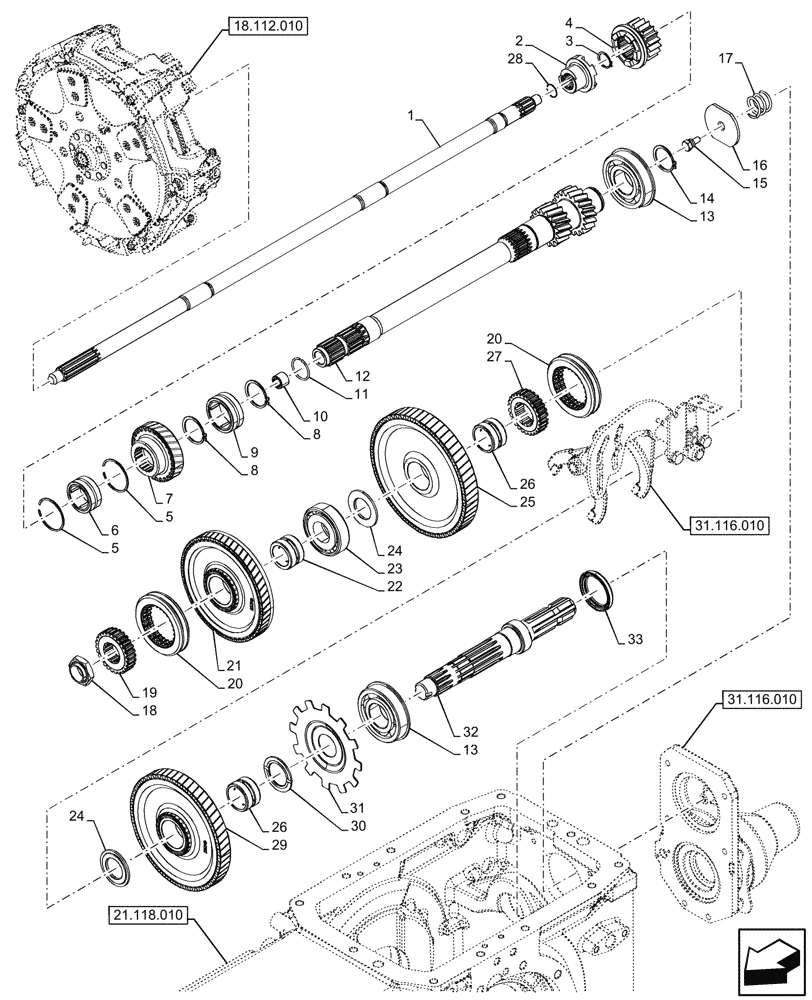

Схема запчастей Case IH FARMALL 80V - (31.116.040) - VAR - 330817 - PTO 540/540E/1000 RPM, SHAFT, TRANSMISSION, GEAR (31) - IMPLEMENT POWER TAKE OFF
21.118.010
24
22
9
15
16
5
13
20
23
8
14
26
7
6
27
19
20
29
12
32
10
5
31
28
3
21
4
1
8
13
33
24
2
17
11
18
25
26
30
18.112.010
31.116.010
31.116.010

Артикул

Название

Примечание

Количество

1

47451313

SHAFT,1014.8mm

1шт.

2

5172083

COUPLING,10T

1шт.

3

11067276

SNAP RING,M24, Ext

1шт.

4

5183818

SPLINED COUPLING,38mm ID x 71mm OD x 48.5mm L

1шт.

5

5173213

SNAP RING,1.5mm Thk, Int

2шт.

6

5173212

NEEDLE BEARING,Needle, 37mm ID x 52mm OD x 22mm W

1шт.

7

84478099

GEAR,26T

1шт.

8

11068976

SNAP RING,M42, Ext

2шт.

9

5173210

NEEDLE BEARING,Needle, 43mm ID x 58mm OD x 22mm W

1шт.

10

5103238

NEEDLE BEARING,15mm ID x 21mm OD x 16mm W

1шт.

11

13398776

SNAP RING,M35, Int

1шт.

12

47798639

SHAFT,556.5mm

1шт.

13

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

2шт.

14

370006

SNAP RING,M40, Ext

1шт.

15

47130774

PIN,13.5mm OD x 22mm L

1шт.

16

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

17

47132279

SPRING,Compression, 33mm OD x 29mm L

1шт.

18

5100183

LOCK NUT,Hex, M328 x 1.5, Cl 8.8

1шт.

19

5173196

GEAR,12T Internal / 26T External

1шт.

20

5130551

SLEEVE,70mm ID x 100mm OD x 20mm L

2шт.

21

84478097

GEAR,52T

1шт.

22

5173189

BUSHING,34mm ID x 46mm OD x 28mm L

1шт.

23

47128681

BUSHING,35mm ID x 81mm OD x 21.0mm L

1шт.

24

5168181

THRUST WASHER,35.1mm ID x 50mm OD x 4mm Thk

2шт.

25

84478101

GEAR,52T

1шт.

26

5124668

BUSHING,38mm ID x 46mm OD x 28mm L

2шт.

27

5130550

PINION,28T / 12T

1шт.

28

5142178

SNAP RING,1.5mm Thk

1шт.

29

84478100

GEAR,54T

1шт.

30

87341678

THRUST WASHER,38.1mm ID x 58mm OD x 2.5mm Thk

1шт.

31

87302766

DISC,38.1mm ID x 152mm OD x 1.5mm Thk

1шт.

32

5185749

SHAFT,M28 x 1.5 x 316mm L, 12T

1шт.

33

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

1шт.

Выбрано товаров: 33
