Запчасти Case IH FARMALL 80V (25.108.130) - VAR - 743515 - 2WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, WHEEL HUB & STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

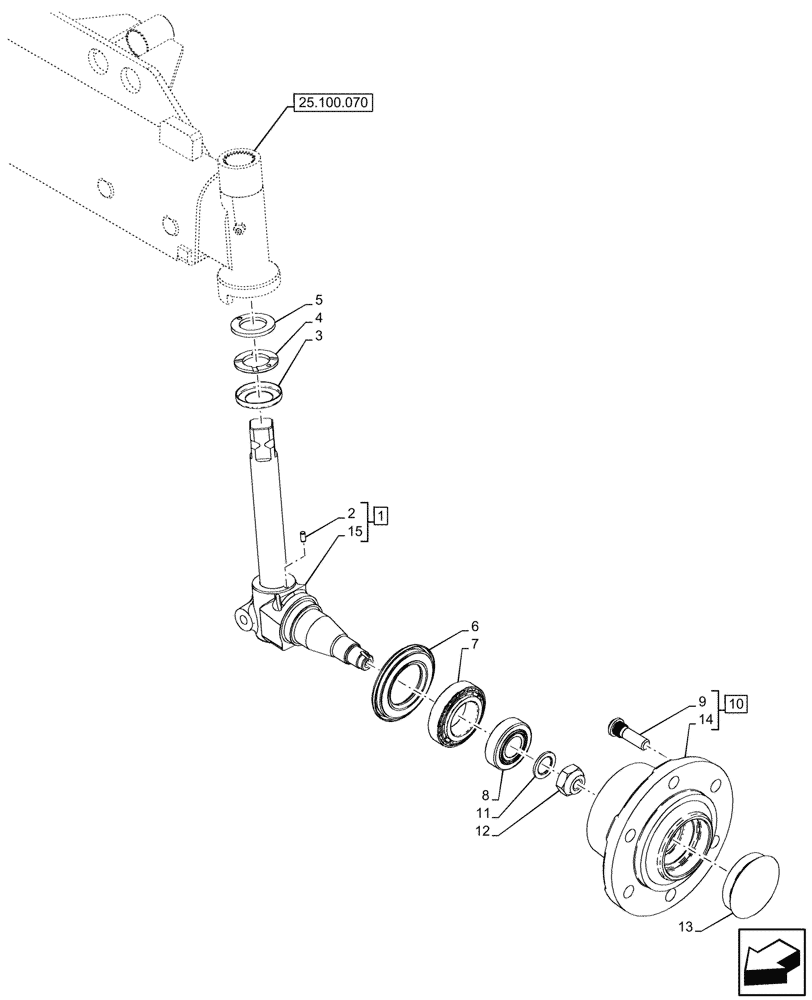

Схема запчастей Case IH FARMALL 80V - (25.108.130) - VAR - 743515 - 2WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, WHEEL HUB & STEERING KNUCKLE (25) - FRONT AXLE SYSTEM
25.100.070
1
11
7
4
14
3
12
6
9
15
2
8
10
13
5

Артикул

Название

Примечание

Количество

1

5183585

STUB AXLE/STEERING S

ASSY, Incl 2, 15

1шт.

2

10486110

DOWEL,M4 x 8

1шт.

3

5126277

CUP,30.5mm ID x 48.5mm OD x 7mm Thk

1шт.

4

5144754

THRUST WASHER,30mm ID x 48mm OD x 4mm Thk

1шт.

5

567499

THRUST WASHER,30mm ID x 40mm OD x 4mm Thk

1шт.

6

4951077

SEAL,50.7mm ID x 91.5mm OD x 11mm Thk

1шт.

7

5132342

TAPERED BEARING,Roller, 41.3mm ID x 73.4mm OD x 17.6mm W

1.62mm ID x 2.89mm OD x 0.770mm

1шт.

8

5132343

TAPERED BEARING,25.4mm ID x 57.17mm OD x 19.43mm W

1шт.

9

81816580

WHEEL BOLT,1/2" - 20 x 1 3/4"

6шт.

10

5183466

HUB

ASSY, Incl 9, 14

1шт.

11

559715

WASHER,20.5mm ID x 32mm OD

1шт.

12

14044271

NUT,Hex, M20 x 1.5

M20 x 1.5

1шт.

13

81812309

HUB CAP,76.2mm OD x 24.6mm Thk

2шт.

14

NSS

NOT SOLD SEPARAT

Front Wheel Hub, Incl in 10

1шт.

15

NSS

NOT SOLD SEPARAT

Steering Knucle, Incl in 1

1шт.

Выбрано товаров: 15
