Запчасти Case IH FARMALL 80V (25.102.010) - VAR - 744473 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, DIFFERENTIAL CARRIER (25) - FRONT AXLE SYSTEM

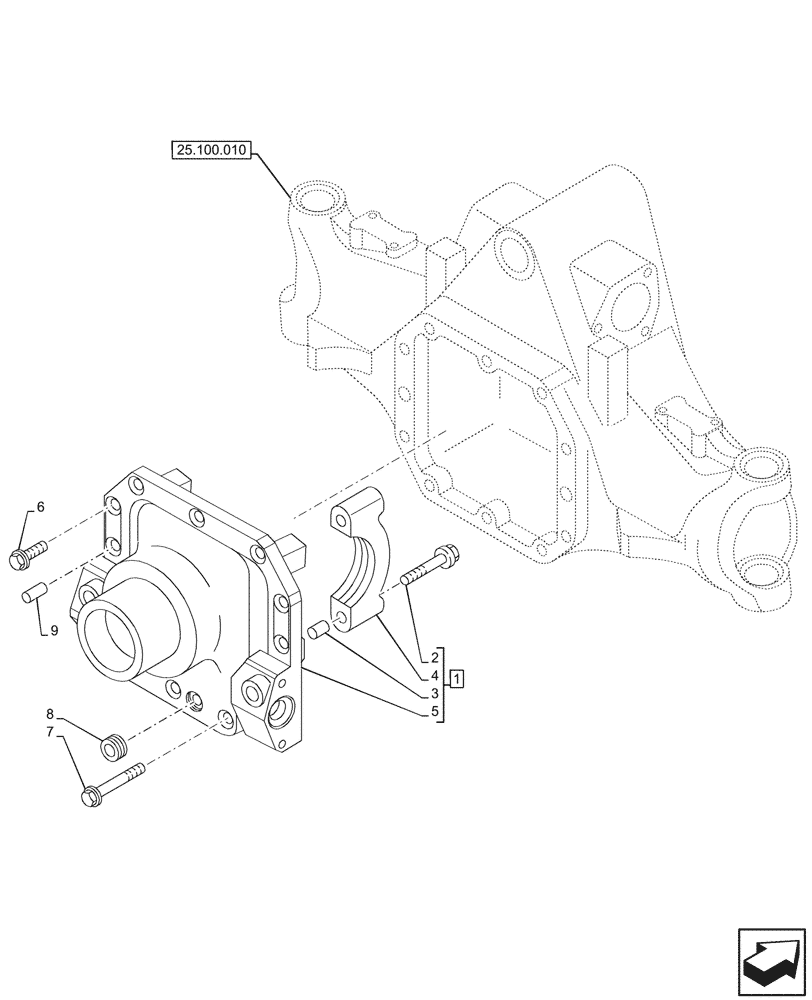

Схема запчастей Case IH FARMALL 80V - (25.102.010) - VAR - 744473 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, DIFFERENTIAL CARRIER (25) - FRONT AXLE SYSTEM
25.100.010
7
9
8
5
1
2
4
3
6

Артикул

Название

Примечание

Количество

1

5194165

SUPPORT

ASSY, Incl 2 - 5

1шт.

2

S301065

BOLT,Hex Flg, M14 x 75, 12.9

4шт.

3

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

4шт.

4

NSS

NOT SOLD SEPARAT

Differential Keep Front Axle, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

6

5194169

BOLT,Hex Flg, M12 x 33, 12.9

5шт.

7

128365A1

BOLT,M12 x 1.75 x 75mm

M12 x 1.75 x 75

5шт.

8

110782A1

PLUG, DRAIN,M24 x 1.5

M24 x 1.5

1шт.

9

6914416

PIN,18mm OD x 38mm L

2шт.

Выбрано товаров: 9
