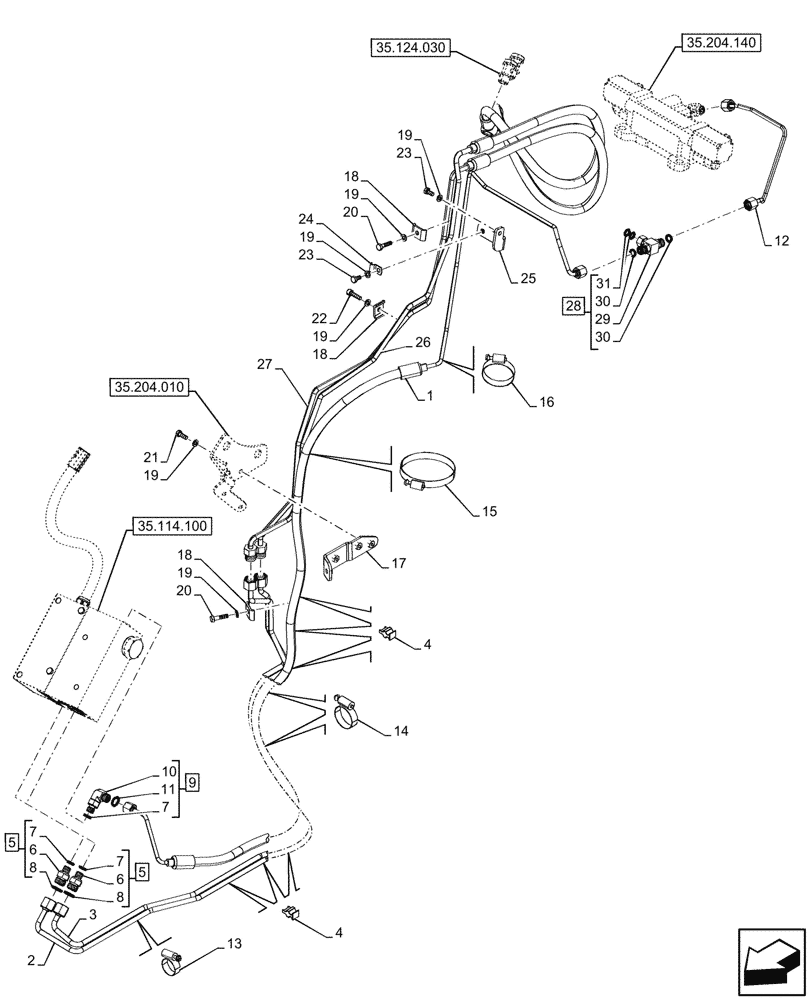

Запчасти Case IH FARMALL 110V (35.204.880) - VAR - 759021 - MID-MOUNT CONTROL VALVE, LINES, STABILIZER, CAB (35) - HYDRAULIC SYSTEMS

1

47651087

PIPE

Pilot from Stabilizer to Remotes Valve

1шт.

2

47650950

PIPE

Delivery to Right Tie Rod

1шт.

3

47650999

PIPE

Return from RH Tie Rod

1шт.

4

87479465

SPACER,4-R4, 25mm L x 13mm L

6шт.

5

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 6, 7 (Qty 1), 8

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

7

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 7 (Qty 1) , 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

47711337

PIPE

1шт.

13

82039346

HOSE CLAMP,30mm - 45mm, Worm Gear

1шт.

14

82039348

HOSE CLAMP,40mm - 60mm

2шт.

15

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

1шт.

16

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

1шт.

17

47676577

BRACKET

1шт.

18

5161207

RETAINER COLLAR,7mm ID x 23mm L

3шт.

19

11194379

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD

7шт.

20

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

21

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

22

14432224

HEX SOC SCREW,M6 x 22mm, Cl 8.8, Full Thd

1шт.

23

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

24

10112904

CLAMP,6mm, 7mm Bolt Hole, J Type

1шт.

25

47676581

BRACKET

1шт.

26

47650972

PIPE

Rear Delivery to Right Tie Rod

1шт.

27

47651002

PIPE

Rear Return from Right Tie Rod

1шт.

28

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

ASSY, Incl 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

Body, Incl in 28

1шт.

30

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

31

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.
