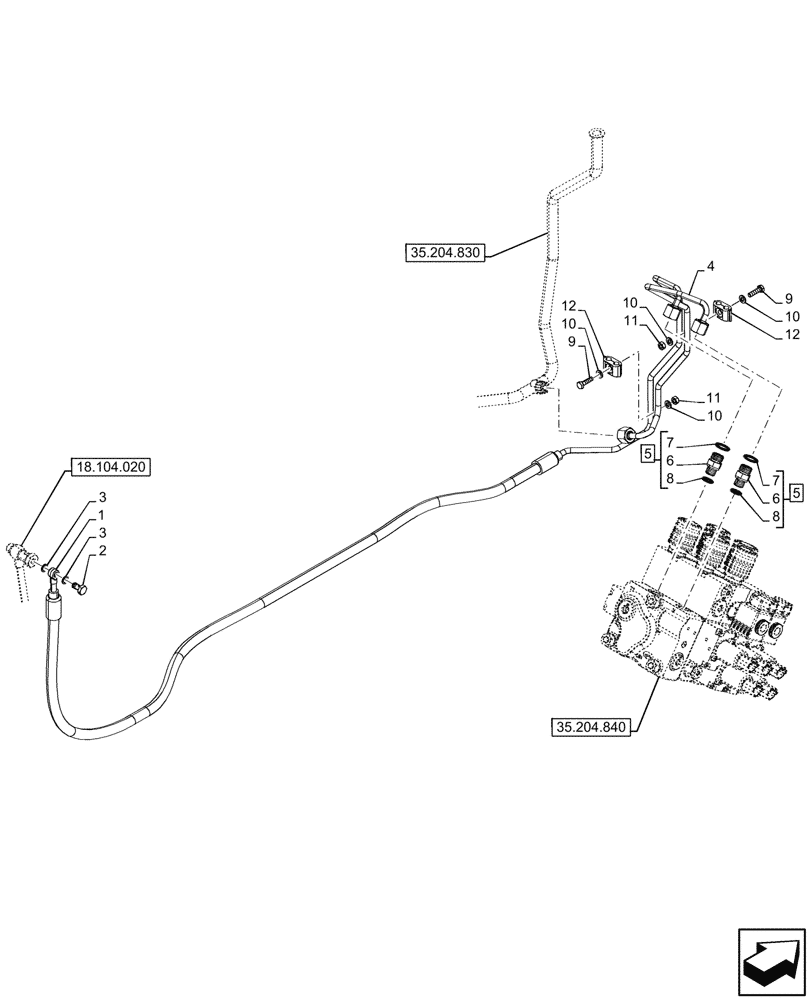

Запчасти Case IH FARMALL 110V (35.204.850) - VAR - 759021 - MID-MOUNT CONTROL VALVE, LINES, W/O STABILIZER, CAB (35) - HYDRAULIC SYSTEMS

1

47781167

PIPE

Return MMV Drain

1шт.

2

11904011

BANJO BOLT,M8 x 1 x 16mm

1шт.

3

14330260

SEALING WASHER,M8.2 x 12 x 1

2шт.

4

47781284

PIPE

Pressure MMV Pilot

1шт.

5

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 6 - 8

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

7

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

10902521

SCREW,Hex, M6 x 22mm, Cl 8.8, Full Thd

2шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

11

10720111

NUT,M6, Cl 8

2шт.

12

84549394

BLOCK

2шт.
