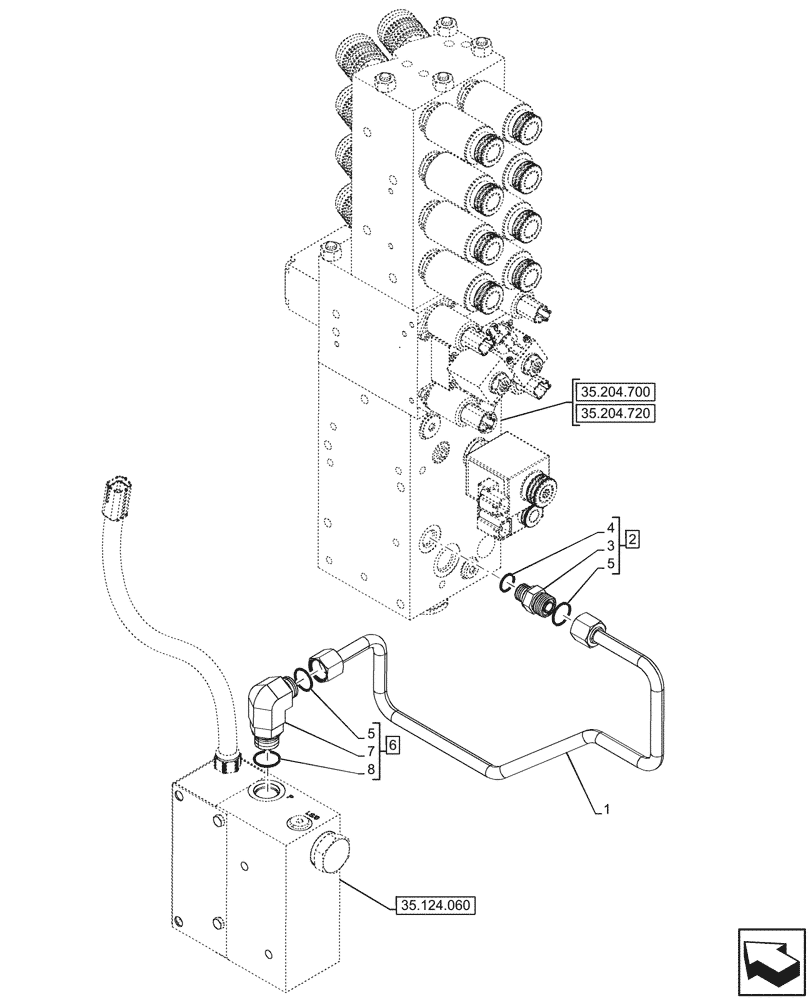

Запчасти Case IH FARMALL 110V (35.204.820) - VAR - 743970 - MID-MOUNT CONTROL VALVE, LINES, W/ 10 COUPLERS, W/ HYDRAULIC STABILIZERS, CAB (35) - HYDRAULIC SYSTEMS

1

47448039

PRESSURE PIPE

Delivery to MMV

1шт.

2

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 3, 4, 5 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

86579692

90 ELBOW,90 Degree, 13/16"-18 ORFS x M22 x 1.5 ORB

ASSY, Incl 5 (Qty 1), 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.

8

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
