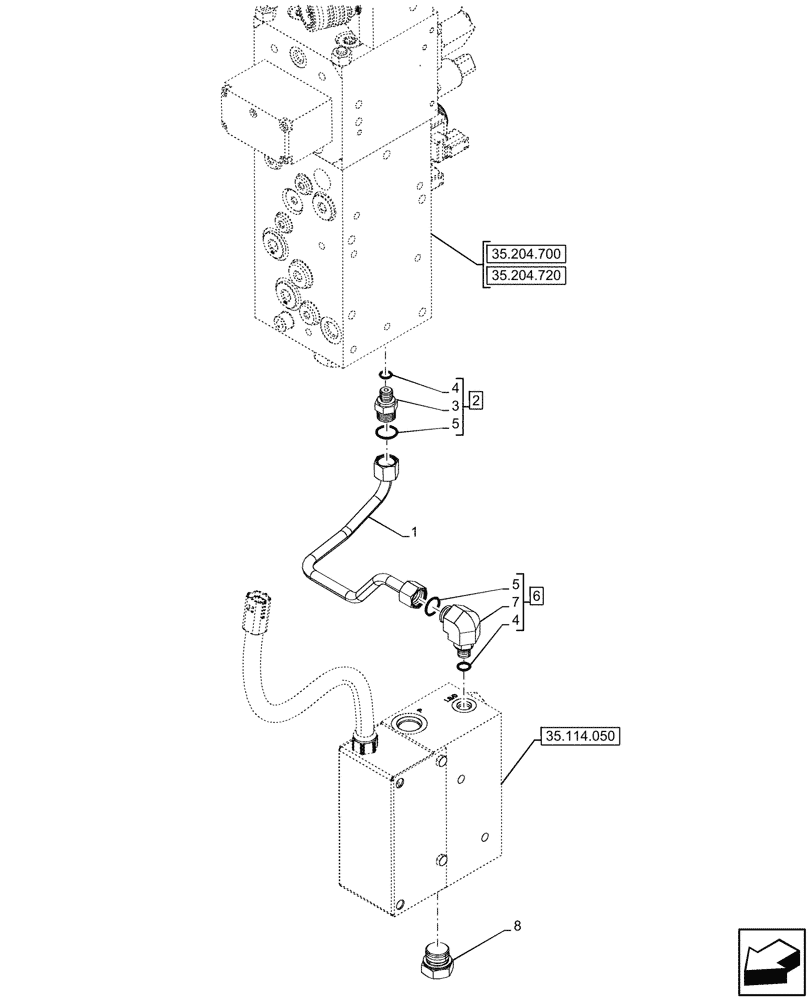

Запчасти Case IH FARMALL 110V (35.204.790) - VAR - 743970 - MID-MOUNT CONTROL VALVE, LINES, W/ 10 COUPLERS, W/ HYDRAULIC STABILIZERS, CAB (35) - HYDRAULIC SYSTEMS

1

47632978

PRESSURE PIPE

Pressure from MMV to HPL

1шт.

2

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

6

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 4, 5 , 7

1шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

8

87773529

PLUG,Hex, M22 x 1.5

1шт.
