(35.204.740) - VAR - 743970 - MID-MOUNT CONTROL VALVE, SUPPORT, CAB

Запчасти Case IH FARMALL 110V (35.204.740) - VAR - 743970 - MID-MOUNT CONTROL VALVE, SUPPORT, CAB (35) - HYDRAULIC SYSTEMS

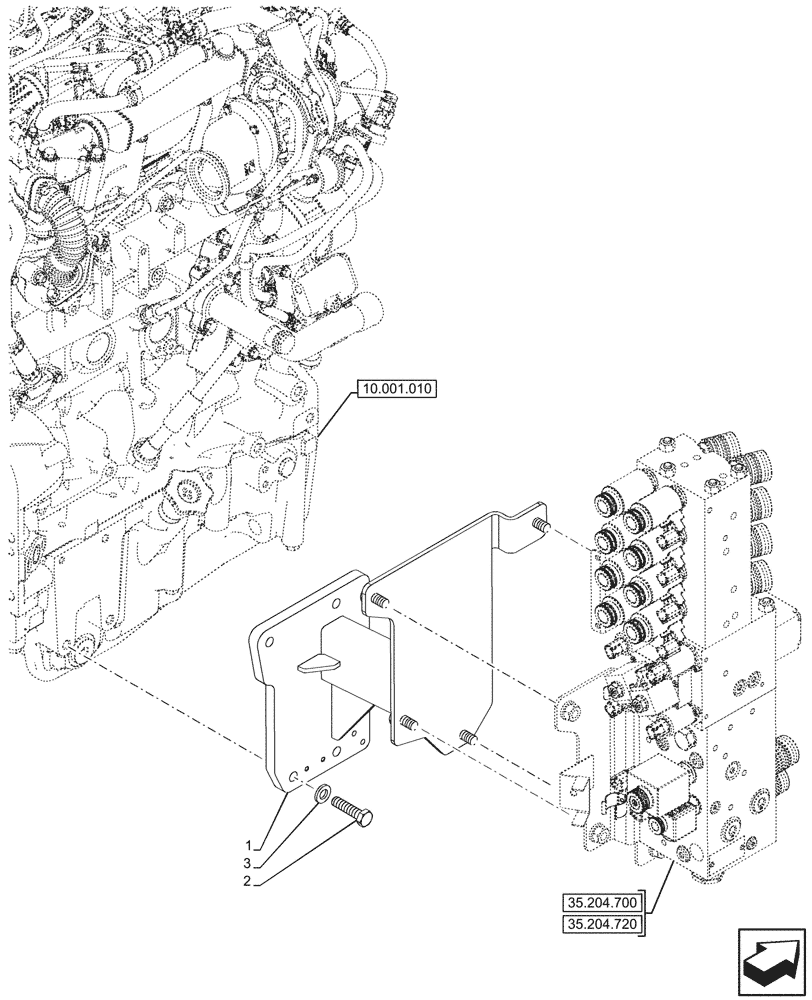

Схема запчастей Case IH FARMALL 110V - (35.204.740) - VAR - 743970 - MID-MOUNT CONTROL VALVE, SUPPORT, CAB (35) - HYDRAULIC SYSTEMS
10.001.010
3
2
1
35.204.720
35.204.700
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47885423

SUPPORT

1шт.

2

15215731

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9, Full Thd

4шт.

3

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

4шт.
