(35.204.540) - VAR - 759024 - REMOTE CONTROL VALVE, W/ DIVERTER, LEVER, CAB

Запчасти Case IH FARMALL 110V (35.204.540) - VAR - 759024 - REMOTE CONTROL VALVE, W/ DIVERTER, LEVER, CAB (35) - HYDRAULIC SYSTEMS

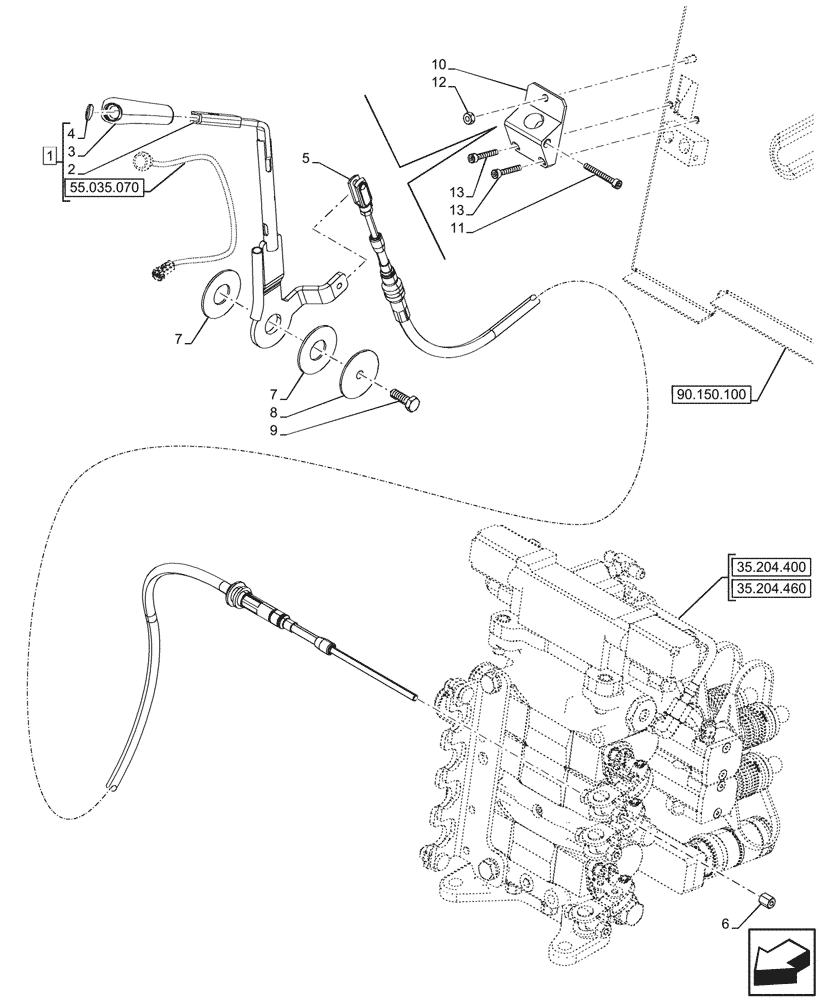

Схема запчастей Case IH FARMALL 110V - (35.204.540) - VAR - 759024 - REMOTE CONTROL VALVE, W/ DIVERTER, LEVER, CAB (35) - HYDRAULIC SYSTEMS
90.150.100
10
8
13
2
11
7
9
12
7
13
3
1
4
6
5
35.204.460
55.035.070
35.204.400
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47591990

CONTROL LEVER

ASSY, 3rd Lever, Incl 2, 3

1шт.

See also Lever Components in Figure 35.204.540

1шт.

2

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

3

47381080

KNOB,Black

1шт.

4

47057201

IDEOGRAM

1шт.

5

47931826

REMOTE CONTROL

1шт.

6

10720114

NUT,Hex, M6 x 1

1шт.

7

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

2шт.

8

47126539

SPACER,8.5mm ID x 50mm OD x 11mm L

1шт.

9

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

1шт.

10

47603939

BLOCK

1шт.

11

14358824

HEX SOC SCREW,M5 x 40mm, Cl 8.8, Full Thd

1шт.

12

15896214

NUT,M6, Cl 8

1шт.

13

14304521

HEX SOC SCREW,M5 x 30mm, Cl 8.8

2шт.
