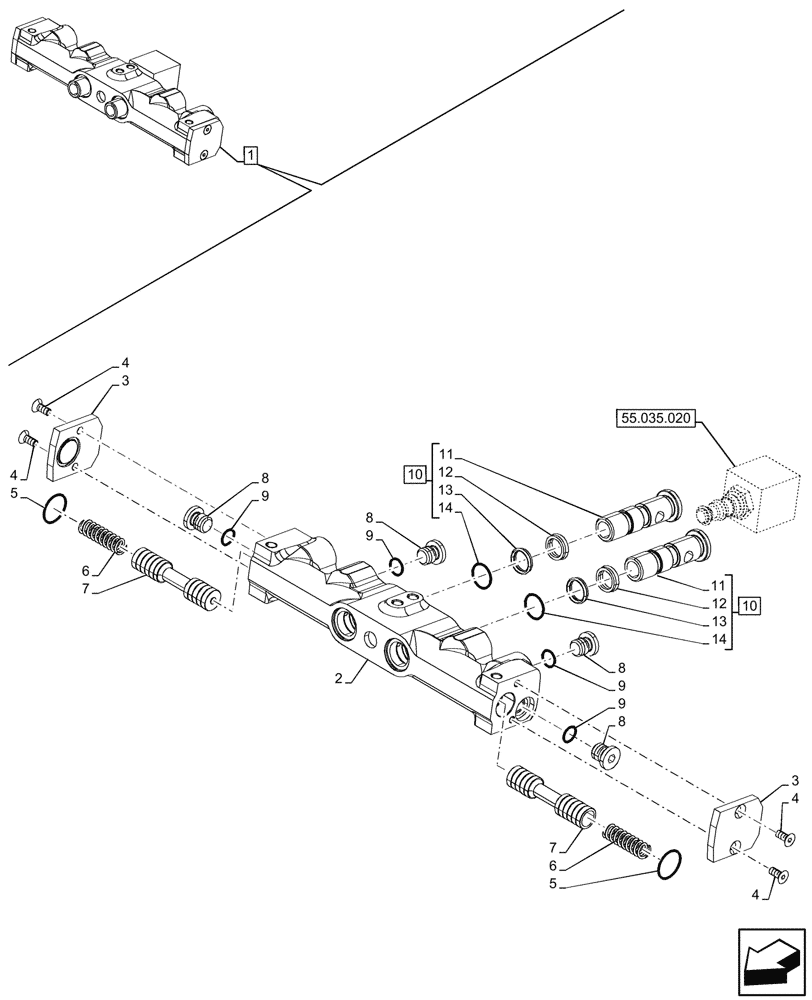

Запчасти Case IH FARMALL 110V (35.204.440) - VAR - 759024 - 3 REMOTE CONTROL VALVES, W/ DIVERTER, COMPONENTS (MDC) (35) - HYDRAULIC SYSTEMS

1

47131020

BODY

ASSY, Manifold, Incl 2 - 14

1шт.

See also Manifold Components in Figure 55.035.020

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

47125558

COVER

2шт.

4

14440624

SET SCREW,Hex Soc, M5 x 12mm, Flat Pt

4шт.

5

86625098

O-RING,0.103" Thk x 0.75" ID, -116, Cl 7, 75 Duro

2шт.

6

47125559

SPRING,Compression, 11.5mm OD x 37mm L

2шт.

7

47125557

ROD,16mm OD x 73mm L

2шт.

8

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

4шт.

9

14437685

O-RING,9.30mm ID x 2.40mm

4шт.

10

47131017

BANJO BOLT,M18 x 1.5 x 67mm

ASSY, Incl 11 - 14

2шт.

11

NSS

NOT SOLD SEPARAT

Bolt, Incl in 10

1шт.

12

47126244

GASKET KIT

1шт.

13

47131201

GASKET KIT

1шт.

14

14437985

O-RING,15.3mm ID x 2.4mm

1шт.
