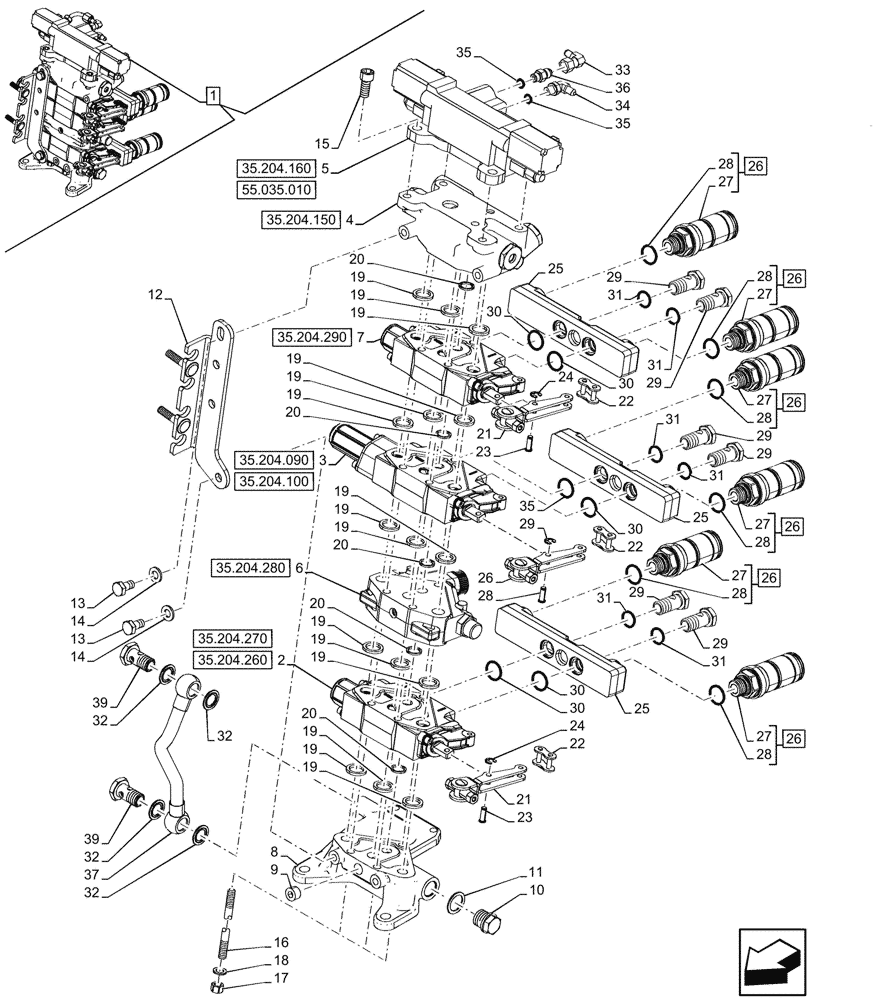

Запчасти Case IH FARMALL 110V (35.204.310) - VAR - 759023 - 3 REMOTE CONTROL VALVES, COMPONENTS (EDC), CAB (35) - HYDRAULIC SYSTEMS

1

48032930

DISTRIBUTOR

ASSY, 3 Remote EDC W/O Diverter, Incl 2 - 38

1шт.

2

84406708

DISTRIBUTOR

S/D Effect & Kick Out, ASSY

1шт.

3

84406706

REMOTE CONTROL VALVE

ASSY

1шт.

4

87374218

FLANGE

ASSY

1шт.

5

82011395

HYDRAULIC VALVE

Draft, ASSY

1шт.

6

87397107

CONTROL VALVE

Flow, ASSY

1шт.

7

47389206

DISTRIBUTOR

W/Float, ASSY

1шт.

8

5176480

FLANGE

1шт.

9

48054702

PLUG,Hex socket, M16 x 1.5

M16 x 11mm

1шт.

10

10305911

PLUG,M22 x 1.5 x 27

1шт.

11

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

M22 x 30mm

1шт.

12

48031772

BRACKET

1шт.

13

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

15

81864028

HEX SOC SCREW,7/16" - 14 x 1", Gr 8

4шт.

16

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

17

5116857

NUT,3/8" - 24

3шт.

18

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

19

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

15шт.

20

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

5шт.

21

47529977

CONTROL LEVER

3шт.

22

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

23

5172456

PIN,6mm OD x 20mm L

3шт.

24

11087776

CIRCLIP,Ext., M6, BLO

4шт.

25

5185533

HYD CONNECTOR

3шт.

26

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Incl 27 (Qty 1), 28 (Qty 1)

6шт.

27

NSS

NOT SOLD SEPARAT

Coupling, Incl in 26

6шт.

28

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

29

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18 x 1.5 x 38mm

6шт.

30

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

6шт.

31

14437985

O-RING,15.3mm ID x 2.4mm

6шт.

32

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

33

86513593

90 ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1шт.

34

83934423

90 ELBOW,7/16"-20, 37° x 7/16"-20, O-Ring

1шт.

35

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

36

82002503

HYD CONNECTOR,1/2-20 UNF-2A, 7/16-20 UNF-2A, 31.2mm L

1шт.

37

5188501

RIGID TUBE

Delivery Pipe to HPL

1шт.
