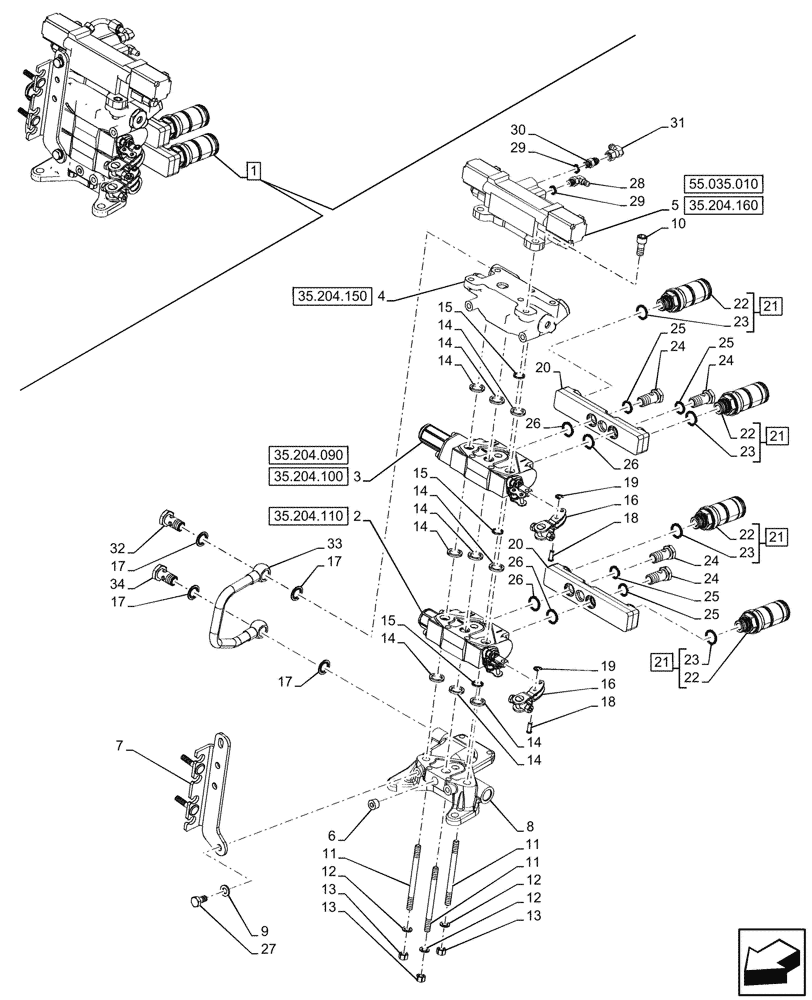

Запчасти Case IH FARMALL 110V (35.204.140) - VAR - 759022 - 2 REMOTE CONTROL VALVES, COMPONENTS (EDC), CAB (35) - HYDRAULIC SYSTEMS

1

48032920

DISTRIBUTOR

ASSY, 2 Remote EDC, Incl 2 - 34

1шт.

2

47389200

DISTRIBUTOR

ASSY

1шт.

3

84406706

REMOTE CONTROL VALVE

ASSY

1шт.

4

87374218

FLANGE

Valve Section, ASSY

1шт.

5

82011395

HYDRAULIC VALVE

Draft, ASSY

1шт.

6

48054702

PLUG,Hex socket, M16 x 1.5

1шт.

7

48031772

BRACKET

1шт.

8

5176480

FLANGE

1шт.

9

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

10

81864028

HEX SOC SCREW,7/16" - 14 x 1", Gr 8

4шт.

11

5150104

STUD,3/8" - 24 x 5"

3шт.

12

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

13

5116857

NUT,3/8" - 24

3шт.

14

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

9шт.

15

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

3шт.

16

47529977

CONTROL LEVER

2шт.

17

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

18

5172456

PIN,6mm OD x 20mm L

2шт.

19

11087776

CIRCLIP,Ext., M6, BLO

2шт.

20

5185533

HYD CONNECTOR

2шт.

21

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Incl 22 (Qty 1), 23 (Qty 1)

4шт.

22

NSS

NOT SOLD SEPARAT

Coupling, Incl in 21

2шт.

23

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

24

5168481

BANJO BOLT,M18 x 1.5 x 38mm

4шт.

25

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

26

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

4шт.

27

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

28

83934423

90 ELBOW,7/16"-20, 37° x 7/16"-20, O-Ring

1шт.

29

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

30

82002503

HYD CONNECTOR,1/2-20 UNF-2A, 7/16-20 UNF-2A, 31.2mm L

1шт.

31

86513593

90 ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1шт.

32

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

33

47937958

PIPE

Delivery Pipe to HPL

1шт.
