Запчасти Case IH FARMALL 110V (35.204.080) - VAR - 759022 - 2 REMOTE CONTROL VALVES, COMPONENTS (MDC) (35) - HYDRAULIC SYSTEMS

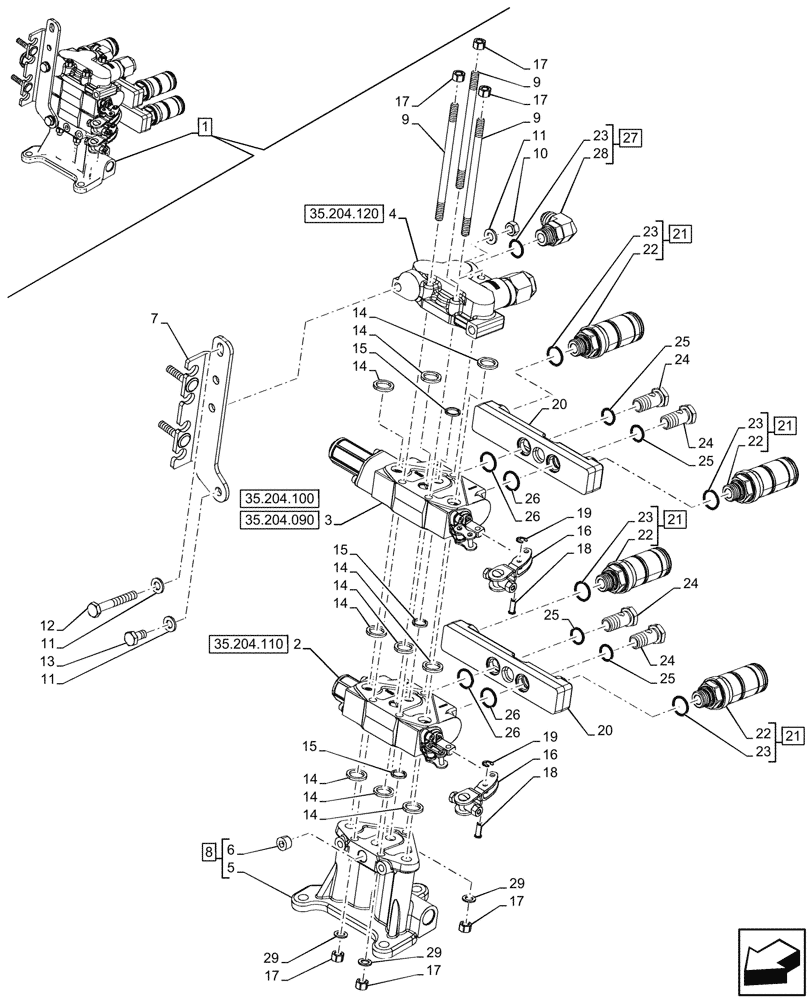

Схема запчастей Case IH FARMALL 110V - (35.204.080) - VAR - 759022 - 2 REMOTE CONTROL VALVES, COMPONENTS (MDC) (35) - HYDRAULIC SYSTEMS
35.204.120
18
4
13
22
25
11
12
11
18
24
17
24
3
6
26
17
14
22
19
20
23
14
15
17
25
21
17
21
29
9
16
17
9
24
2
26
23
29
22
29
8
14
17
9
14
27
21
19
16
21
1
14
23
14
10
28
24
15
23
7
22
20
14
23
25
5
14
11
26
15
14
25
26
35.204.110
35.204.100
35.204.090

Артикул

Название

Примечание

Количество

1

48032857

DISTRIBUTOR

2 Remote MDC, Incl 2 - 29

1шт.

2

47389200

DISTRIBUTOR

ASSY

1шт.

3

84406706

REMOTE CONTROL VALVE

ASSY

1шт.

4

87397264

SUPPORT

Cover Valve, Assy

1шт.

5

5176799

FLANGE

1шт.

6

48054702

PLUG,Hex socket, M16 x 1.5

1шт.

7

48031772

BRACKET

1шт.

8

5176800

FLANGE

ASSY, Incl 5, 6

1шт.

9

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

3шт.

10

86500689

NUT,M10 x 1.5, Cl 10

1шт.

11

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.

12

355788

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.

13

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

14

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

9шт.

15

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

3шт.

16

47529977

CONTROL LEVER

2шт.

17

5116857

NUT,3/8" - 24

6шт.

18

5172456

PIN,6mm OD x 20mm L

2шт.

19

11087776

CIRCLIP,Ext., M6, BLO

2шт.

20

5185533

HYD CONNECTOR

2шт.

21

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Incl 22 (Qty 1), 23 (Qty 1)

4шт.

22

NSS

NOT SOLD SEPARAT

Coupling, Incl in 21

4шт.

23

14438085

O-RING,19.3mm ID x 2.4mm

5шт.

24

5168481

BANJO BOLT,M18 x 1.5 x 38mm

4шт.

25

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

26

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

4шт.

27

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

ASSY, Incl 23 (Qty 1), 28

1шт.

28

NSS

NOT SOLD SEPARAT

Elbow, Incl in 27

1шт.

29

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

Выбрано товаров: 29
