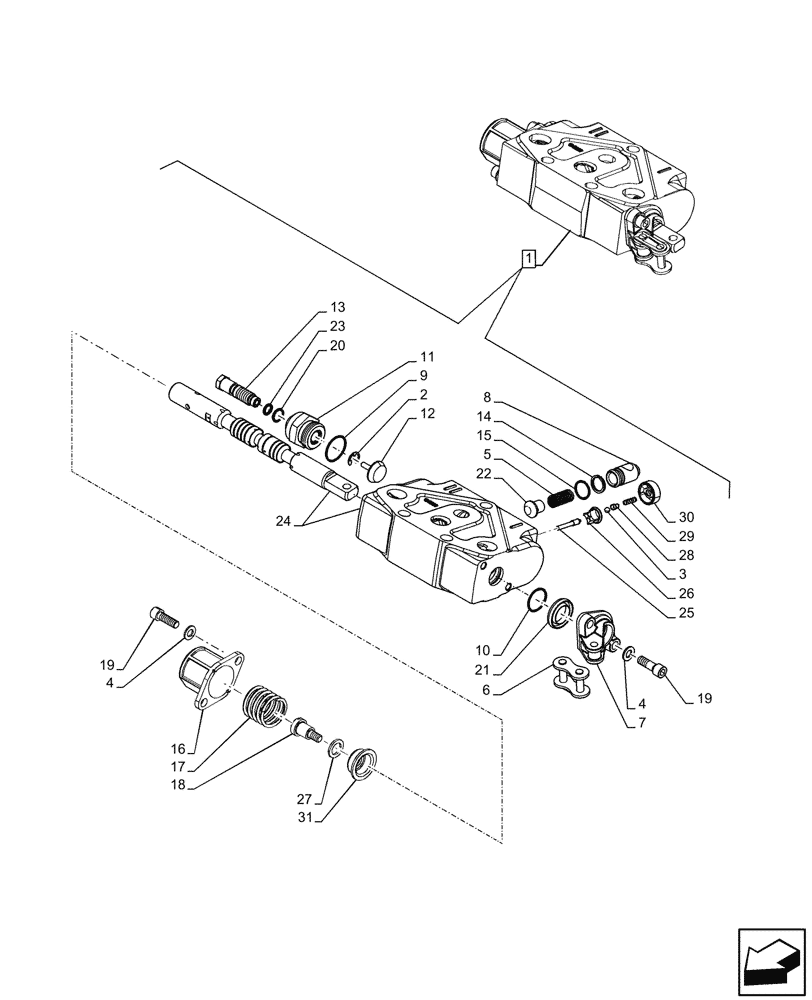

Запчасти Case IH FARMALL 110V (35.204.060) - VAR - 341790 - 2 REMOTE CONTROL VALVES, DISTRIBUTOR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47389200

DISTRIBUTOR

ASSY, Incl 2 - 31

1шт.

2

11087876

CIRCLIP,M7

1шт.

3

20063420

BALL,3.96mm OD, Gr 100

1шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

5

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

6

87658153

LINK,19.05mm Pitch

1шт.

7

84283452

SUPPORT

1шт.

8

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

10

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

11

5136346

BODY,7/8" - 14

1шт.

12

5136347

PIN,3.8mm OD x 15mm L

1шт.

13

5136348

PIN,10mm OD x 37mm L

1шт.

14

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

15

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

16

5116895

COVER

1шт.

17

5116893

SPRING,Compression, 27mm OD x 43mm L

1шт.

18

5116894

SCREW,1/4" - 20 x 7/8"

1шт.

19

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

4шт.

20

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

1шт.

21

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

22

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

23

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

24

NSS

NOT SOLD SEPARAT

Distributor, Body Remote and Spool, Incl in 1

1шт.

25

84583579

PUSH ROD,26.8mm L

1шт.

26

47441337

VALVE POPPET,13mm OD x 9.5mm L

1шт.

27

5116892

SHIM,10.4mm ID x 16mm OD x 1.5mm Thk

1шт.

28

84587372

PIN,3mm OD x 4mm L

1шт.

29

87750880

VALVE SPRING,Compression, 3.8mm OD x 11.5mm L

1шт.

30

47439670

RETAINER CUP,M18 x 1.5 x 6.5mm Thk

1шт.

31

5116891

CUP,10.4mm ID x 27mm OD x 10mm Thk

2шт.
