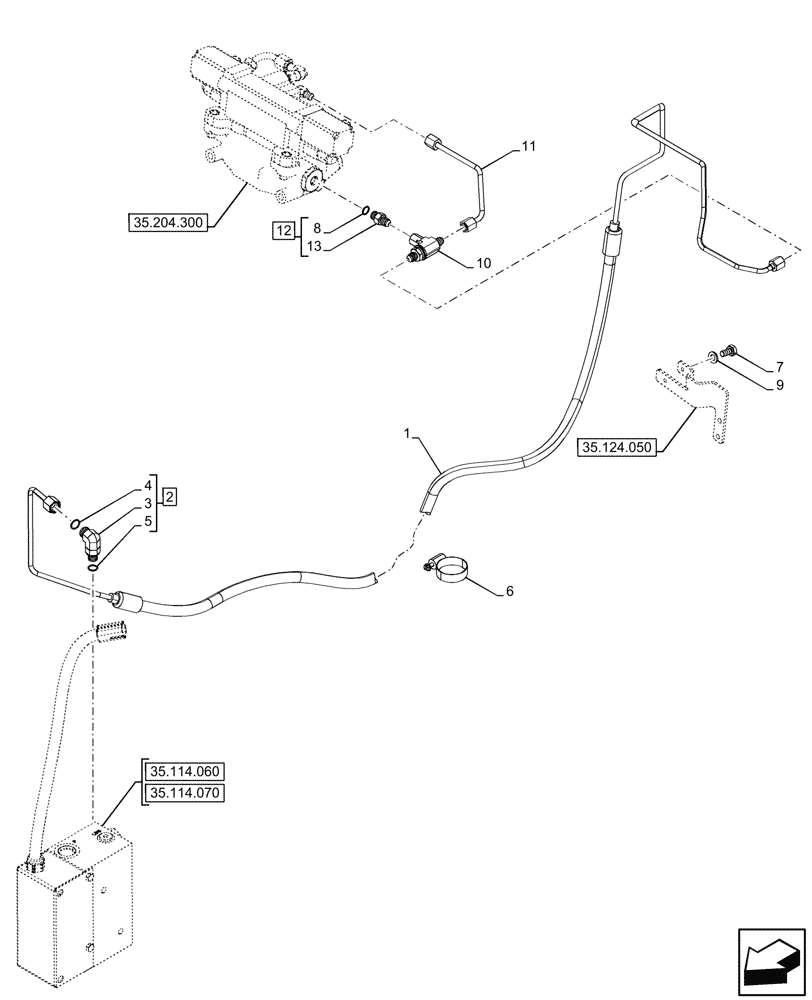

Запчасти Case IH FARMALL 110V (35.124.070) - VAR - 743536 - 3 REMOTE CONTROL VALVES, LINE, CAB (35) - HYDRAULIC SYSTEMS

1

47928090

PIPE

Pilot Stabilizer

1шт.

2

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

1шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

6

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

7

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

8

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

11194379

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD

1шт.

10

87727683

HYD CONNECTOR,M12 x 1.5 x 65mm L

1шт.

11

87731818

RIGID TUBE

Load Sensing Pipe

1шт.

12

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

ASSY, Incl 8, 13

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

1шт.
