(35.124.010) - VAR - 334945, 341516 - 3 POINT HITCH, HYDRAULIC STABILIZER, PIPE

Запчасти Case IH FARMALL 110V (35.124.010) - VAR - 334945, 341516 - 3 POINT HITCH, HYDRAULIC STABILIZER, PIPE (35) - HYDRAULIC SYSTEMS

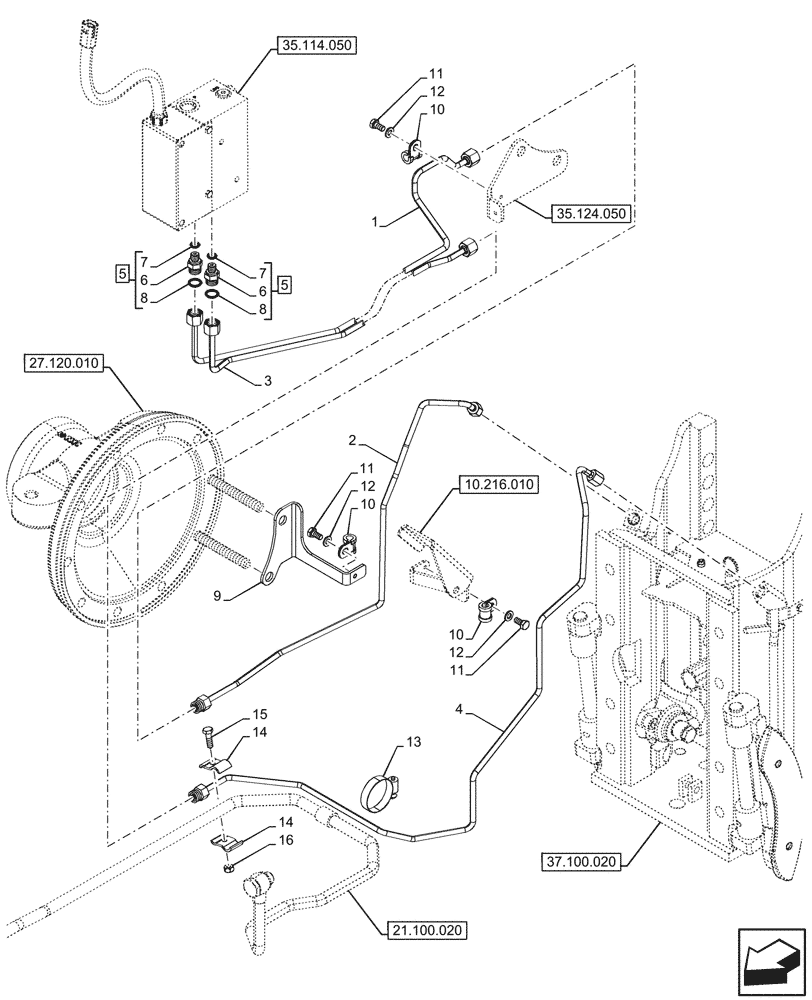

Схема запчастей Case IH FARMALL 110V - (35.124.010) - VAR - 334945, 341516 - 3 POINT HITCH, HYDRAULIC STABILIZER, PIPE (35) - HYDRAULIC SYSTEMS
21.100.020
5
9
10
7
8
1
13
11
10
11
2
16
14
10
6
7
11
4
3
12
6
14
12
5
12
8
15
35.114.050
35.124.050
37.100.020
10.216.010
27.120.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47449729

PIPE

Valve Hydraulic Stabilizer to Rear RH Hydraulic Stabilizer Pipe

1шт.

2

47650481

PIPE

Rear RH Hydraulic Stabilizer

1шт.

3

47914668

PIPE

Valve Hydraulic Stabilizer to Rear LH Hydraulic Stabilizer Pipe

1шт.

4

47914685

PIPE

Rear LH Hydraulic Stabilizer

1шт.

5

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 6 - 8

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

7

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

87624509

BRACKET

1шт.

10

10441190

CLAMP,8mm, Coat, 7mm Bolt Hole, P Type

3шт.

11

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

3шт.

12

11194379

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD

3шт.

13

87016722

HOSE CLAMP,#40, 2.06/3.00 Type F Worm, W/liner

1шт.

14

47368419

CLAMP

2шт.

15

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

16

15896214

NUT,M6, Cl 8

1шт.
