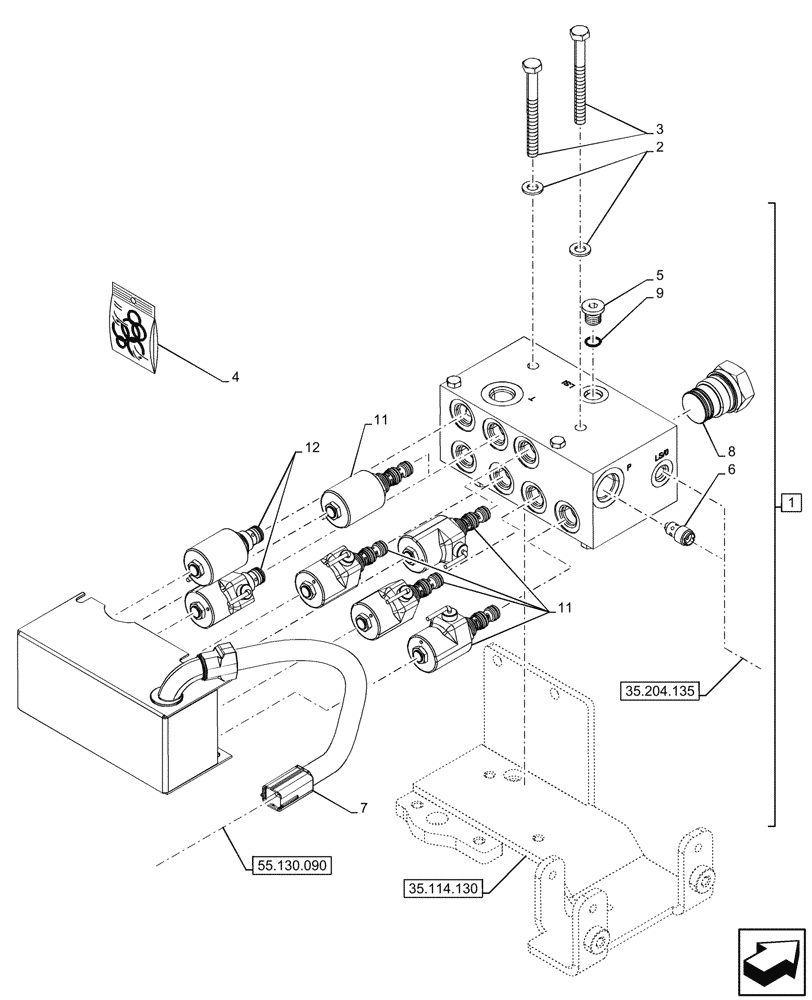

Запчасти Case IH FARMALL 110V (35.114.120) - VAR - 743536 - 3 POINT HITCH, CONTROL VALVE, W/ DOC (35) - HYDRAULIC SYSTEMS

1

48014267

VALVE

Assy, Incl. 4 -12

1шт.

2

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

2шт.

3

614-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

4

87755782

SEAL KIT

Hydraulic stabilizer

1шт.

5

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

6

87755781

HYDRAULIC VALVE

1шт.

7

87755779

GUARD

1шт.

8

87755780

PLUG

1шт.

9

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

10

NSS

NOT SOLD SEPARAT

Manifold, Incl. in 1

1шт.

11

47914189

SOLENOID VALVE

2шт.

12

47914188

SOLENOID VALVE

5шт.
