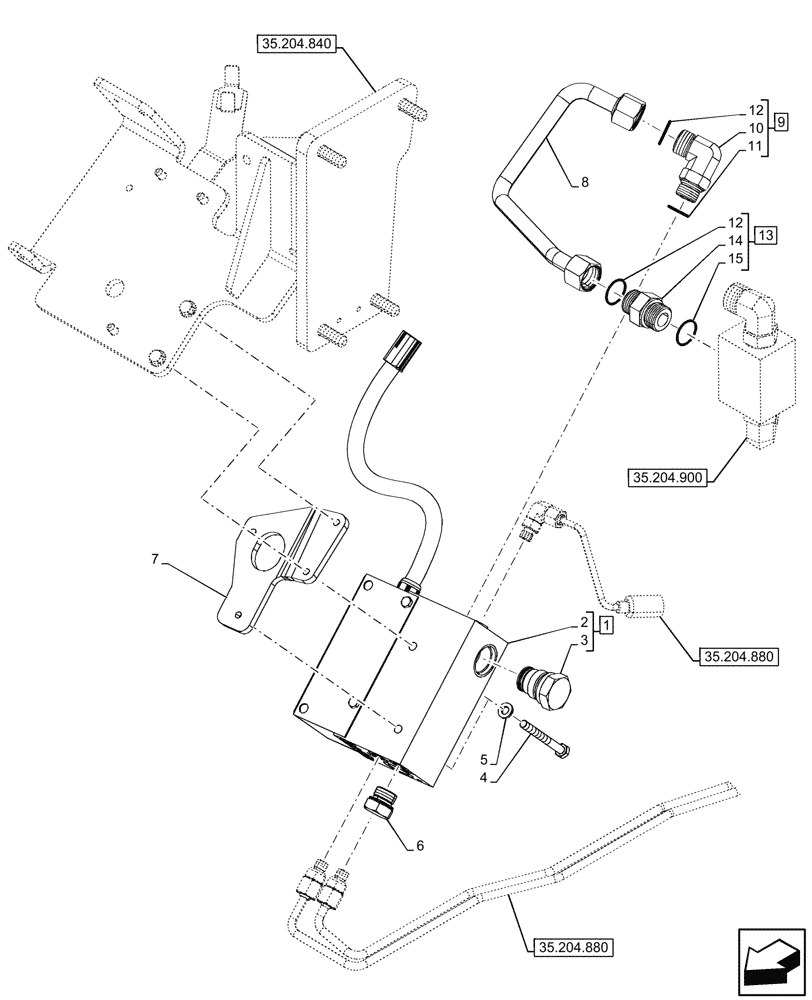

Запчасти Case IH FARMALL 110V (35.114.100) - VAR - 759021 - MID-MOUNT CONTROL VALVE, LINES, STABILIZER, CAB (35) - HYDRAULIC SYSTEMS

1

47912386

VALVE

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

87498966

PLUG

1шт.

4

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

5

11193871

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

6

87773529

PLUG,Hex, M22 x 1.5

1шт.

7

47727285

BRACKET

1шт.

8

47651094

PIPE

Delivery to Hid Stabilizer

1шт.

9

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Incl 10 - 12 (Q.ty 1)

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

1шт.

11

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

12

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

ASSY, Incl 12 (Q.ty 1), 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

15

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.
