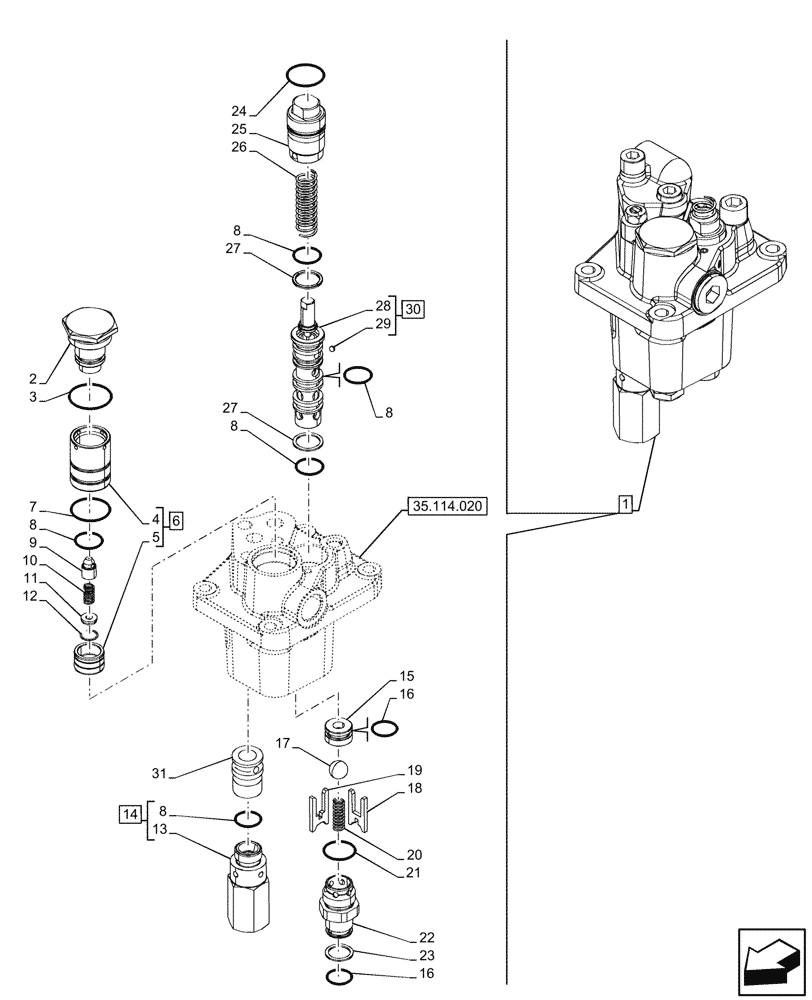

Запчасти Case IH FARMALL 110V (35.114.030) - VAR - 342377, 342378, 342379, 342380, 342381, 744833, 759013 - REAR, HYDRAULIC LIFT, CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84277583

CONTROL VALVE

ASSY, Incl 2 - 31

1шт.

See also Control Valve Components in Figure 35.114.020

1шт.

1

84277583R

REMAN-HYD VALVE

Reman Control Valve ASSY, Incl 2 - 31

1шт.

1

84277583C

CORE-VALVE HYD

Return Number

1шт.

2

5122029

PLUG,M32 x 1.5

1шт.

3

14458081

O-RING,1.112" ID x 0.103" Width

1шт.

4

84185199

REMOTE CONTROL VALVE

1шт.

5

5117728

PISTON

1шт.

6

84185201

VALVE SEAT

ASSY, Incl 4, 5

1шт.

7

14454081

O-RING,1.051" ID x 0.07" Width

1шт.

8

14457381

O-RING,17.12mm ID x 2.62" Width

5шт.

9

5117732

PIN,10.5mm OD x 15.5mm L

1шт.

10

5115469

SPRING,Compression, 7.7mm OD x 14.5mm L

1шт.

11

5122030

SPRING WASHER,5mm ID x 11.7mm OD x 3mm Thk

1шт.

12

13420376

SNAP RING,M12, Int

1шт.

13

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 14

1шт.

14

5117739

VALVE PRESSURE RELIE,M20 x 1.5

ASSY, Incl 8 (Qty 1), 13

1шт.

15

5156290

VALVE SEAT,20mm OD x 12mm Thk

1шт.

16

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

17

20063580

BALL,13.49mm OD, Gr 100

1шт.

18

5148907

SPACER,3mm Thk

1шт.

19

5148905

SPACER,3mm Thk

1шт.

20

5156289

SPRING,Compression, 8.5mm OD x 25.5mm L

1шт.

21

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

22

5156291

HYD CONNECTOR,M24 x 1.5

1шт.

23

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

24

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

25

5117725

PLUG,M27 x 1.5

1шт.

26

4973361

SPRING,Compression, 15.5mm OD x 50.5mm L

1шт.

27

5117726

WASHER,17.83mm ID x 22.19mm OD x 1.14mm Thk

2шт.

28

NSS

NOT SOLD SEPARAT

Pilot Valve, Incl in 30

1шт.

29

20063420

BALL,3.96mm OD, Gr 100

1шт.

30

84277569

PILOT VALVE

ASSY, Incl 28, 29

1шт.

31

47124173

VOLTAGE REGULATOR

1шт.
