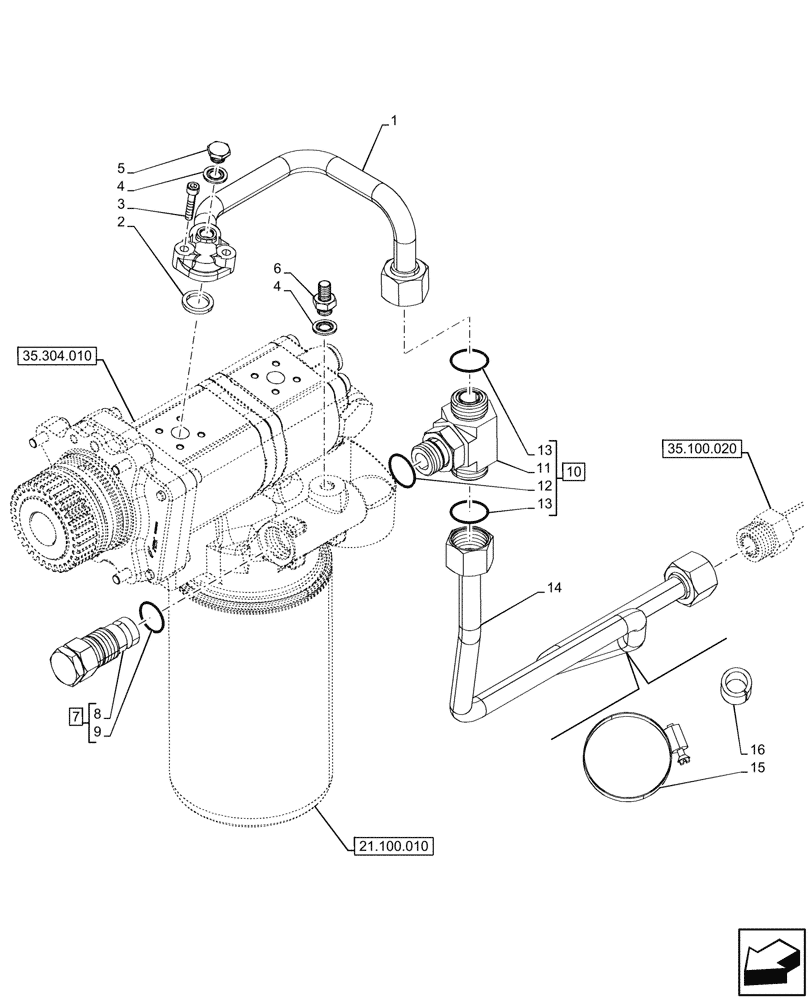

Запчасти Case IH FARMALL 110V (35.100.030) - VAR - 743516, 743517, 743915, 743970 - DELIVERY PIPE, LIFT ARM, STEERING, 60L (35) - HYDRAULIC SYSTEMS

1

47461089

PIPE,18mm OD

from Pump to Oil Filter T Connector, 18mm OD

1шт.

2

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

1шт.

3

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

4

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

5

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

6

84564689

SCREW,M10 x 1, M12 x 1.5 x 29mm L

1шт.

7

5191767

HYDRAULIC VALVE,M28 x 1.5

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Valve, Incl in 7

1шт.

9

14453980

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

10

86579712

TEE,M27 x 2 x 55.5mm

ASSY, Incl 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 10

1шт.

12

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

13

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

47581423

PIPE,15mm OD

from Oil Filter T Connector to Remote Control Valve Line, 15mm OD

1шт.

15

87040758

HOSE CLAMP,71.4mm - 95.2mm

1шт.

16

4959735

SPACER,18mm ID x 25mm OD x 30mm L

1шт.
