Запчасти Case IH FARMALL 110V (31.114.010) - VAR - 333804 - PTO 540-540E RPM, SHAFT, TRANSMISSION, GEAR (31) - IMPLEMENT POWER TAKE OFF

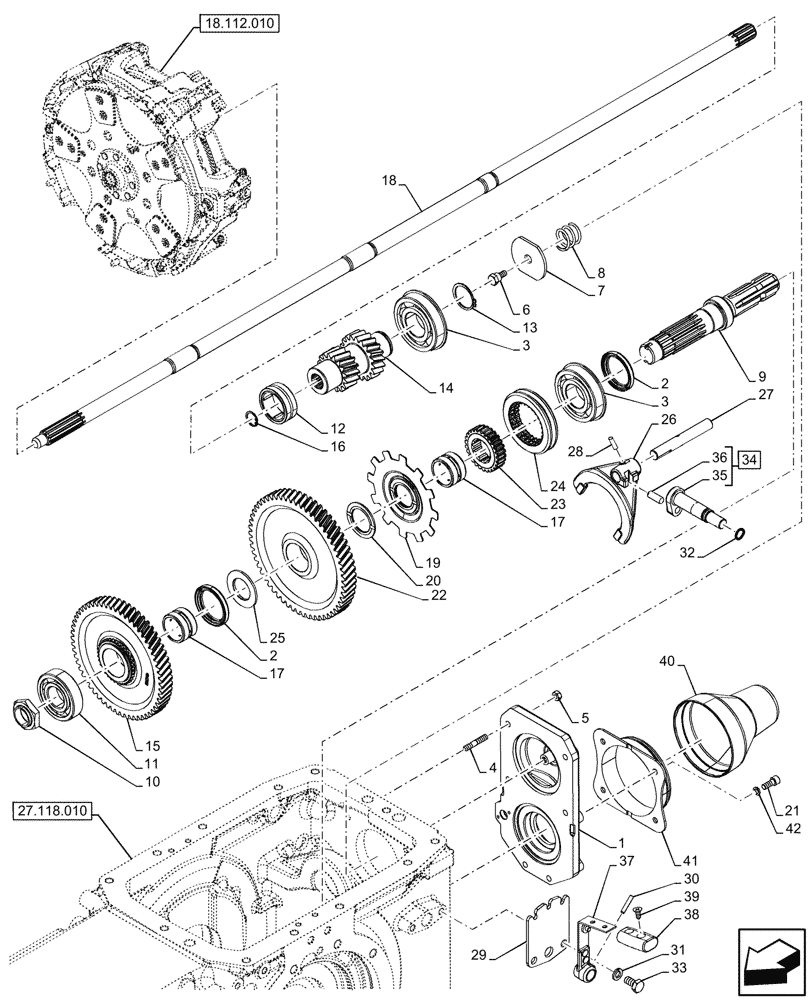

Схема запчастей Case IH FARMALL 110V - (31.114.010) - VAR - 333804 - PTO 540-540E RPM, SHAFT, TRANSMISSION, GEAR (31) - IMPLEMENT POWER TAKE OFF
18.112.010
38
32
3
26
1
12
4
30
9
20
39
7
24
28
13
23
19
34
42
41
5
27
29
27.118.010
17
37
33
3
31
11
15
25
35
16
17
2
10
18
21
2
14
8
22
40
36
6

Артикул

Название

Примечание

Количество

1

47133661

COVER

1шт.

2

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

1шт.

3

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

2шт.

4

16746824

STUD

6шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

6шт.

6

47130774

PIN,13.5mm OD x 22mm L

1шт.

7

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

8

47132279

SPRING,Compression, 33mm OD x 29mm L

1шт.

9

5180296

SHAFT,M32 x 1.5 x 264.5mm L, 12T

1шт.

10

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

11

47128681

BUSHING,35mm ID x 81mm OD x 21.0mm L

1шт.

12

5173210

NEEDLE BEARING,Needle, 43mm ID x 58mm OD x 22mm W

1шт.

13

370006

SNAP RING,M40, Ext

1шт.

14

5174347

SHAFT,138mm

1шт.

15

84478101

GEAR,52T

1шт.

16

11058076

SNAP RING,M22, Int

1шт.

17

5124668

BUSHING,38mm ID x 46mm OD x 28mm L

2шт.

18

47451312

SHAFT,1496mm L, 10T

1шт.

19

87302766

DISC,38.1mm ID x 152mm OD x 1.5mm Thk

1шт.

20

87341678

THRUST WASHER,38.1mm ID x 58mm OD x 2.5mm Thk

1шт.

21

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

22

84478100

GEAR,54T

1шт.

23

5130550

PINION,28T / 12T

1шт.

24

5130551

SLEEVE,70mm ID x 100mm OD x 20mm L

1шт.

25

5168181

THRUST WASHER,35.1mm ID x 50mm OD x 4mm Thk

1шт.

26

5173448

YOKE,16mm Hole Dia

1шт.

27

5176335

ROD,16mm OD x 116mm L

1шт.

28

14604070

LOCK PIN,M6 x 28, Slotted

1шт.

29

5177569

PLATE

1шт.

30

14601270

ROLL PIN,M5 x 28, Slotted

1шт.

31

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

2шт.

32

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

33

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

34

5173465

LEVER

ASSY, Incl 35, 36

1шт.

35

5173464

SHAFT,15.7mm ID x 20mm OD x 95.5mm L

1шт.

36

5154545

PIN,10mm OD x 25mm L

1шт.

37

5177567

LEVER

1шт.

38

5131161

HANDLE GRIP

1шт.

39

15919407

SCREW,Cross Flat Hd, M6.3 x 16

2шт.

40

5171520

SHIELD,132mm L

1шт.

41

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

42

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

Выбрано товаров: 42
