Запчасти Case IH FARMALL 110V (21.134.130) - VAR - 743968 - POWERSHUTTLE, TRANSMISSION CONTROL VALVE, COMPONENTS, PIPE, HI-LO (21) - TRANSMISSION

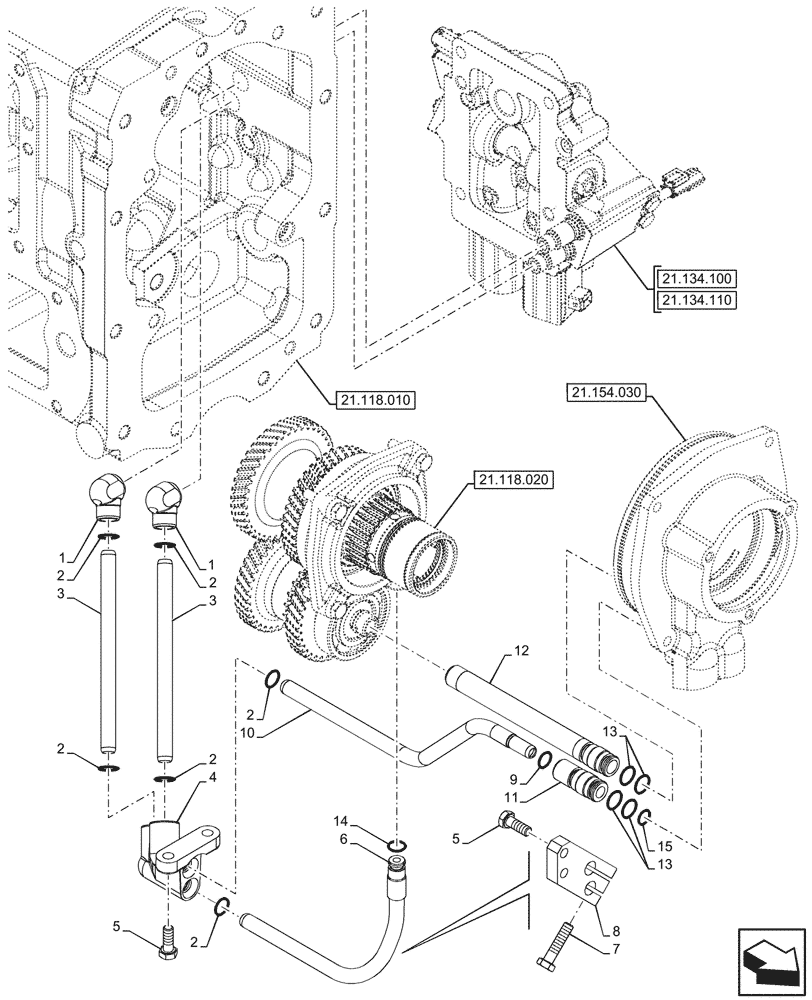

Схема запчастей Case IH FARMALL 110V - (21.134.130) - VAR - 743968 - POWERSHUTTLE, TRANSMISSION CONTROL VALVE, COMPONENTS, PIPE, HI-LO (21) - TRANSMISSION
21.134.100
3
11
2
13
5
2
12
8
6
7
5
9
2
4
13
15
3
1
1
2
14
10
2
2
21.118.020
21.118.010
21.154.030
21.134.110

Артикул

Название

Примечание

Количество

1

5177627

HYD CONNECTOR,M14 x 1.5 x 24mm

2шт.

2

5103230

O-RING,2.62mm Thk x 11.91mm ID

6шт.

3

5176059

RIGID TUBE

2шт.

4

5177629

MANIFOLD

1шт.

5

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

6

5176047

RIGID TUBE

1шт.

7

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

8

5176052

BRACKET

1шт.

9

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

10

5176044

RIGID TUBE

1шт.

11

5173962

HYD CONNECTOR,46mm L

1шт.

12

5173963

RIGID TUBE

1шт.

13

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

4шт.

14

14456880

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

15

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

Выбрано товаров: 15
