Запчасти Case IH FARMALL 105V (1.17.0/01[03]) - RADIATOR PROTECTIVE SEALS AND CONVEYOR (02) - ENGINE EQUIPMENT

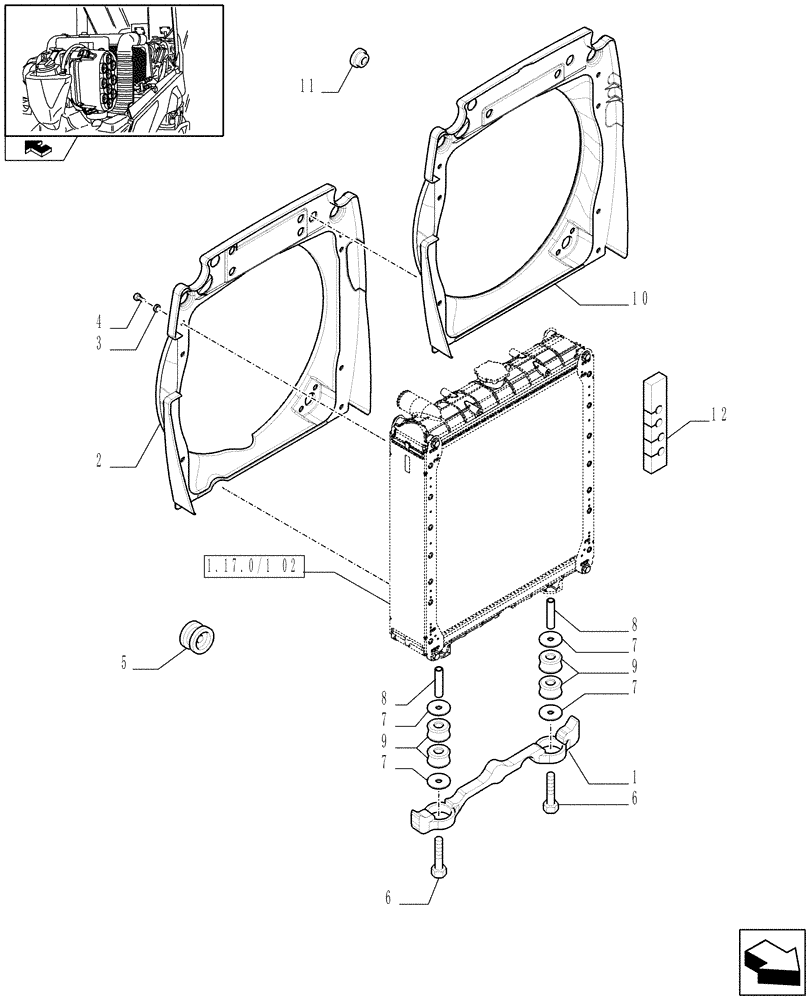

Схема запчастей Case IH FARMALL 105V - (1.17.0/01[03]) - RADIATOR PROTECTIVE SEALS AND CONVEYOR (02) - ENGINE EQUIPMENT
6
1
2
1
4
7
home
6
1.17.0/1 02
3
1
7
12
10
8
5
9
8
9
7
7

Артикул

Название

Примечание

Количество

1

87747288

SEAL

1шт.

2

84467558

CONVEYOR

105V, 105N

1шт.

3

14499431

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

, Serial Range: -`0

8шт.

QTY = 8 for 95V Model, 95N Model; QTY = 6 for 105V Model, 105N Model

1шт.

3

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

, Serial Range: -`0

2шт.

105V Model, 105N Model

1шт.

4

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

, Serial Range: -`0

8шт.

QTY = 8 for 95V Model, 95N Model; QTY = 6 for 105V Model, 105N Model

1шт.

4

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

105V, 105N

2шт.

5

10402480

GROMMET,18mm ID x 25mm Groove D x 33mm OD

18 x 2.5

1шт.

5

10397480

GROMMET,14mm ID x 20mm Groove D x 27mm OD

14 x 2.5

1шт.

5

10397580

INSULATING RING,16mm ID x 22mm Groove D x 29mm OD

16 x 2.5

1шт.

6

15971624

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

7

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

8

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

9

5108225

RUBBER MOUNTING

4шт.

10

87489771

GUARD

95V, 95N

1шт.

11

5120060

PLUG,30mm, Black

1шт.

12

84577716

GASKET

105V, 105N

1шт.

Выбрано товаров: 19
