Запчасти Case IH FARMALL 105V (82.00[02]) - 4WD DRIVING WHEELS (11) - WHEELS/TRACKS

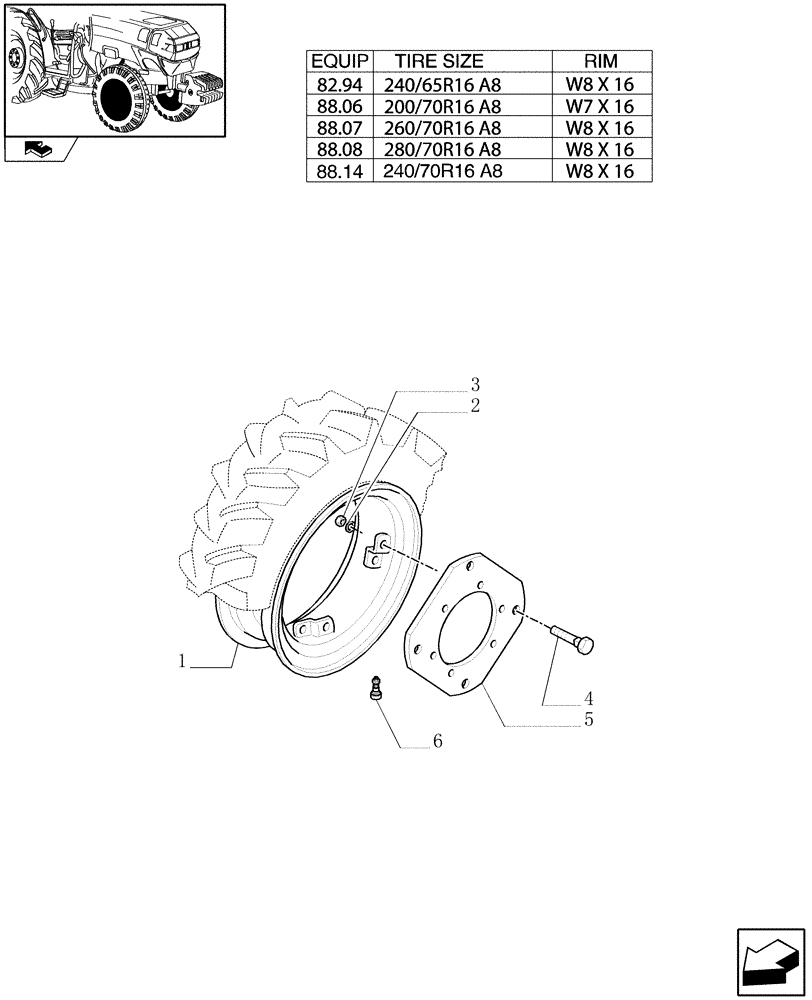

Схема запчастей Case IH FARMALL 105V - (82.00[02]) - 4WD DRIVING WHEELS (11) - WHEELS/TRACKS
2
5
1
6
home
4
3

Артикул

Название

Примечание

Количество

1

47136352

RIM,405.6mm Dia x 177.8mm W, 4 Bolts, CASE Silver

W7 x 16

2шт.

1

84134800

RIM,405.6mm Dia x 203mm W, 4 Bolts, CASE Silver

W8 x 16

2шт.

2

10730921

WASHER

Equip.88.06 Only

8шт.

2

5186568

WASHER,16.3mm ID x 31.5mm OD x 2.5mm Thk

Equip.88.08-88.14-82.94-88.07 Only

8шт.

3

10790524

NUT,M16 x 1.5

8шт.

4

4959003

BOLT,M16 x 1.5 x 40mm, CL 10.9

Carriage, M16 x 1.5 x 38

8шт.

5

47136351

WHEEL DISC,309mm Dia, 10 Bolts

2шт.

6

87323751

PNEUMATIC VALVE

2шт.

Выбрано товаров: 8
