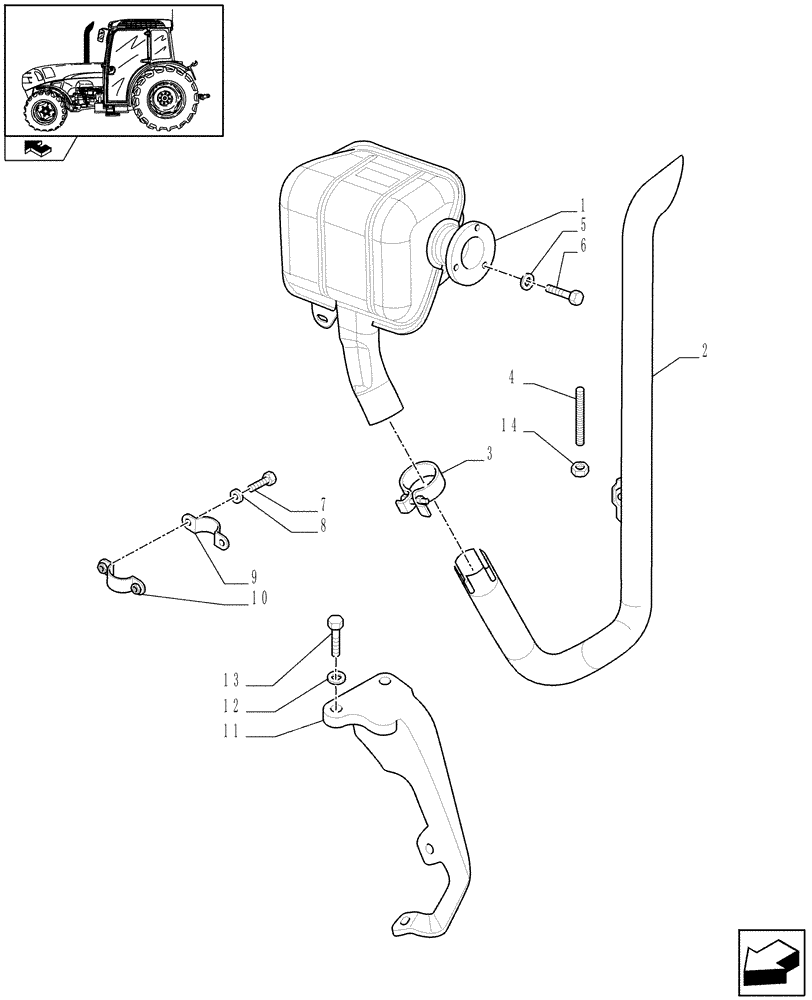

Запчасти Case IH FARMALL 105V (1.15.1/05) - VERTICAL EXHAUST - W/CAB (VAR.330151) (02) - ENGINE EQUIPMENT

1

87371188

MUFFLER

1шт.

2

87723273

EXTENSION

1шт.

3

87667303

HOSE CLAMP,58mm - 58.5mm

1шт.

4

13516920

STUD,M8 x 12mm x 22mm, Cl 8.8

M8 x 12 x 22

1шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

7

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

4шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

9

5183964

HOSE CLIP

2шт.

10

5180679

HOSE CLIP

2шт.

11

84127210

BRACKET

1шт.

12

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

13

11112624

BOLT,M12 x 35, 8.8, Full Thd

2шт.

14

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.
