(1.15.1/03) - HORIZONTAL EXHAUST WITH GUARD SHIELD (VAR.332150)

Запчасти Case IH FARMALL 105V (1.15.1/03) - HORIZONTAL EXHAUST WITH GUARD SHIELD (VAR.332150) (02) - ENGINE EQUIPMENT

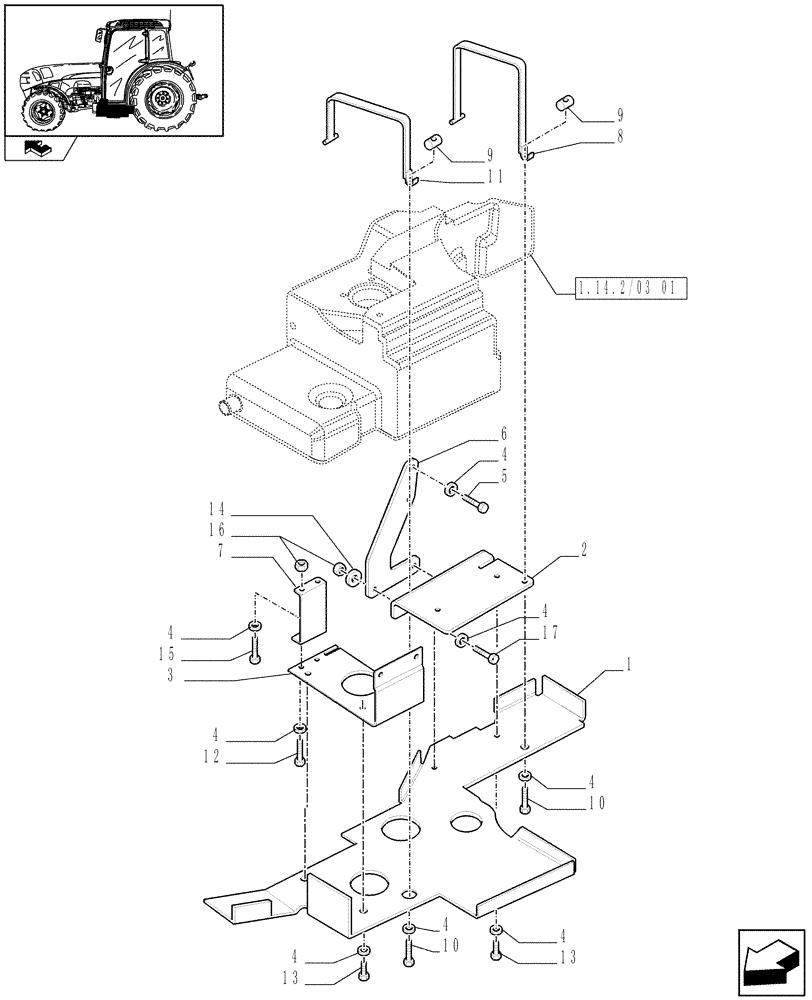

Схема запчастей Case IH FARMALL 105V - (1.15.1/03) - HORIZONTAL EXHAUST WITH GUARD SHIELD (VAR.332150) (02) - ENGINE EQUIPMENT
13
11
8
1
4
7
4
13
5
home
9
10
3
4
16
15
6
1.14.2/03 01
17
2
4
10
14
4
4
4
9
4
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87371188

MUFFLER

1шт.

2

87474464

GUARD

1шт.

3

87667303

HOSE CLAMP,58mm - 58.5mm

1шт.

4

87474511

GUARD

1шт.

5

12646604

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

3шт.

6

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

3шт.

7

87472557

MUFFLER

ASSY, Incl 2, 4-6, 11, 14

1шт.

8

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

10

13516920

STUD,M8 x 12mm x 22mm, Cl 8.8

M8 x 12 x 22

1шт.

11

14189071

SPRING NUT,M6

3шт.

12

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

14

84167172

GUARD

1шт.

15

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.
