Запчасти Case IH FARMALL 105V (1.92.92[06]) - REAR WINDOW - HINGE & WEATHER STRIP (10) - OPERATORS PLATFORM/CAB

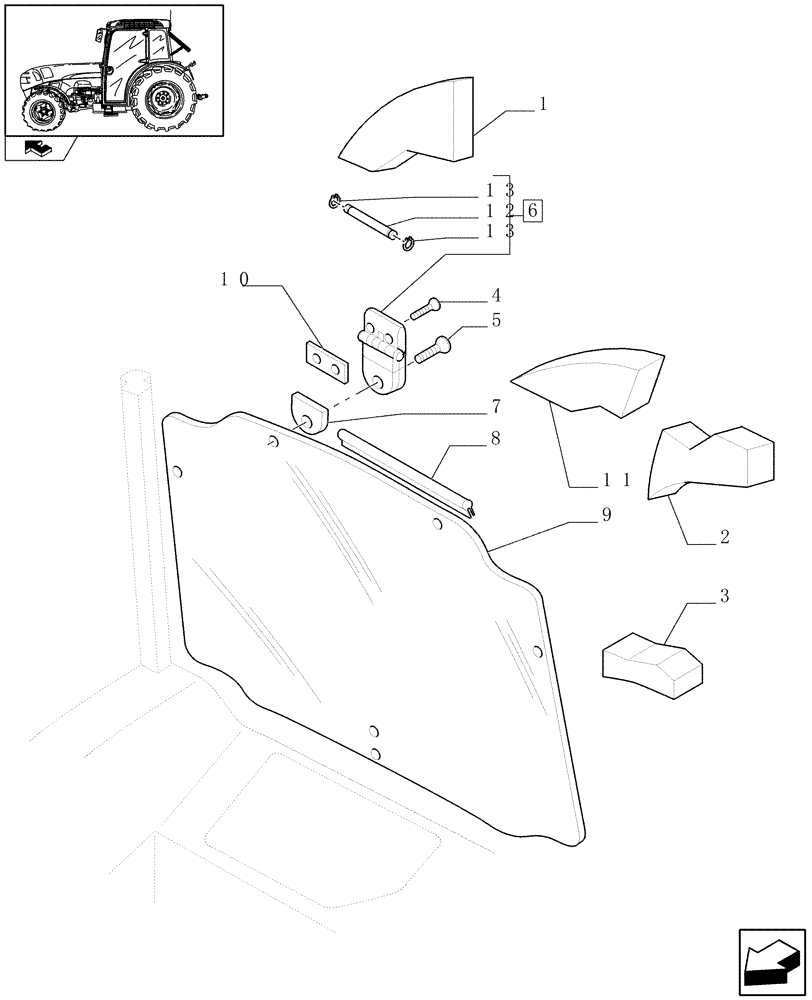

Схема запчастей Case IH FARMALL 105V - (1.92.92[06]) - REAR WINDOW - HINGE & WEATHER STRIP (10) - OPERATORS PLATFORM/CAB
9
3
6
11
home
1
2
10
13
7
8
13
12
4
5

Артикул

Название

Примечание

Количество

1

84582474

SEAL

Upper, 75N, 85N, 95N

1шт.

2

84575509

SEAL

Lower, 75N, 85N, 95N

1шт.

3

84575512

SEAL

Lower, 65V, 75V, 85V, 95V

1шт.

4

5182236

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

M8 x 20

4шт.

5

5182238

HEX SOC SCREW,CSS, M8 x 1.25 x 35mm, Cl 8.8

M8 x 35

2шт.

6

5185205

HINGE

ASSY, Incl 12, 13

2шт.

7

44911858

SEAL,11mm ID x 26mm OD x 8.5mm Thk

RH

1шт.

7

44911859

SEAL,11mm ID x 26mm OD x 8.5mm Thk

LH

1шт.

8

44911822

SEAL, GLASS,2966mm L

1шт.

9

44911795

CAB GLASS ASSY

65V, 75V, 85V, 95V

1шт.

9

44911821

CAB GLASS ASSY

75N, 85N, 95N

1шт.

10

44911521

COVER PLATE

2шт.

11

84573345

SEAL

Upper, ASSY, Incl 12, 13, 65V, 75V, 85V, 95V

1шт.

12

84155532

PIN,7.6mm OD x 87.8mm L

1шт.

13

11065676

SNAP RING,M8, Ext

2шт.

Выбрано товаров: 15
