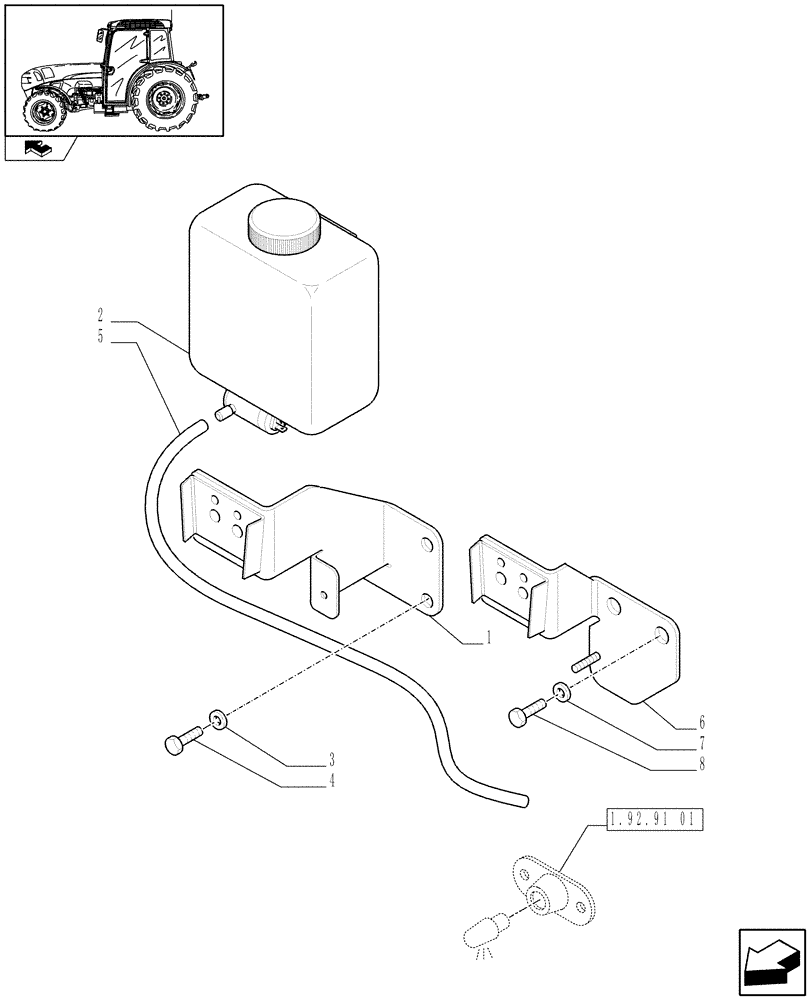

Запчасти Case IH FARMALL 105V (1.92.91[02]) - CAB - WINDSCREEN WIPER FRONT - TANK (10) - OPERATORS PLATFORM/CAB

1

84322836

BRACKET, SUPPORTING

65V, 65N, 85V, 85N

1шт.

2

87490092

RESERVOIR, WINDSHIEL

1шт.

3

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

13 x 24 x 3.2 x 3.8, 65V, 65N, 75V, 75N, 85V, 85N

3шт.

4

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

M12 x 25, 65V, 65N, 75V, 75N, 85V, 85N

3шт.

5

84208072

LARGE HOSE,4mm ID, Vinyl Plastic Black

1шт.

6

84322817

BRACKET, SUPPORTING

95V, 95N

1шт.

7

11191074

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 2.6mm Thk

15 x 27 x 2.6 x 3.1, 95V, 95N

2шт.

8

16050724

BOLT,Hex, M14 x 2 x 20mm, Cl 8.8, Full Thd

M14 x 20, 95V, 95N

2шт.
