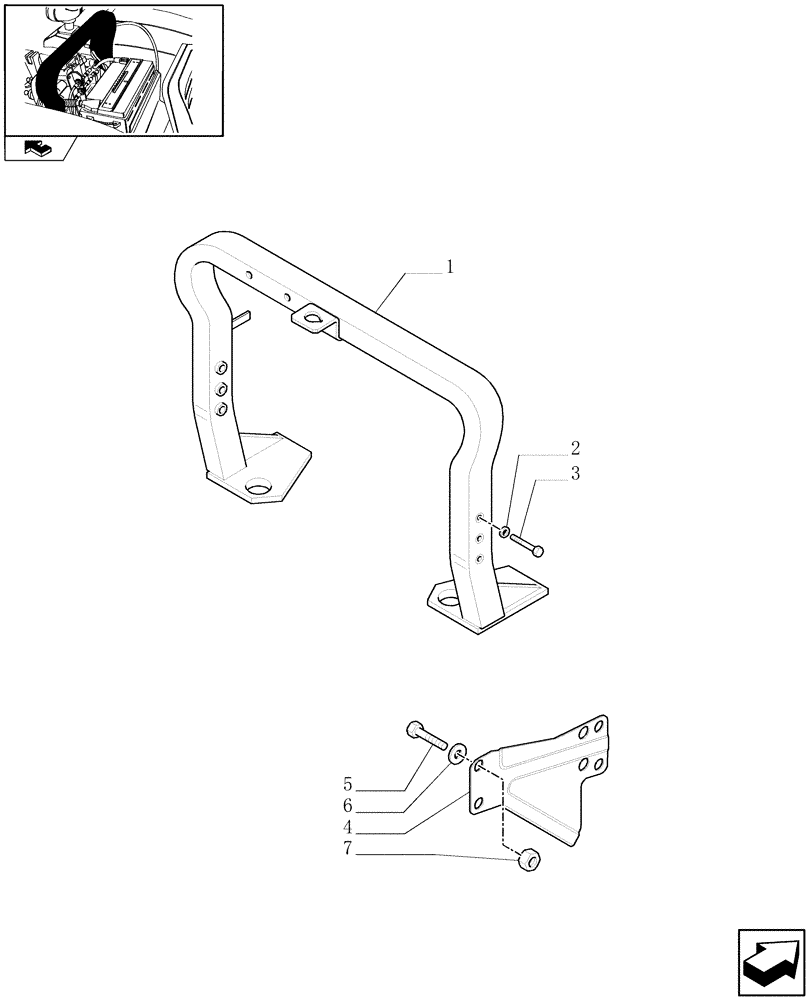

Запчасти Case IH FARMALL 105V (1.92.89) - SAFETY FRAME (10) - OPERATORS PLATFORM/CAB

1

87310092

ROPS

1шт.

2

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

3

15540631

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd

4шт.

4

87307480

REINFORCEMENT

RH

1шт.

4

87307478

REINFORCEMENT

LH

1шт.

5

14783914

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

2шт.

6

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

7

12164714

NUT,M10 x 1.25, Cl 8

2шт.
