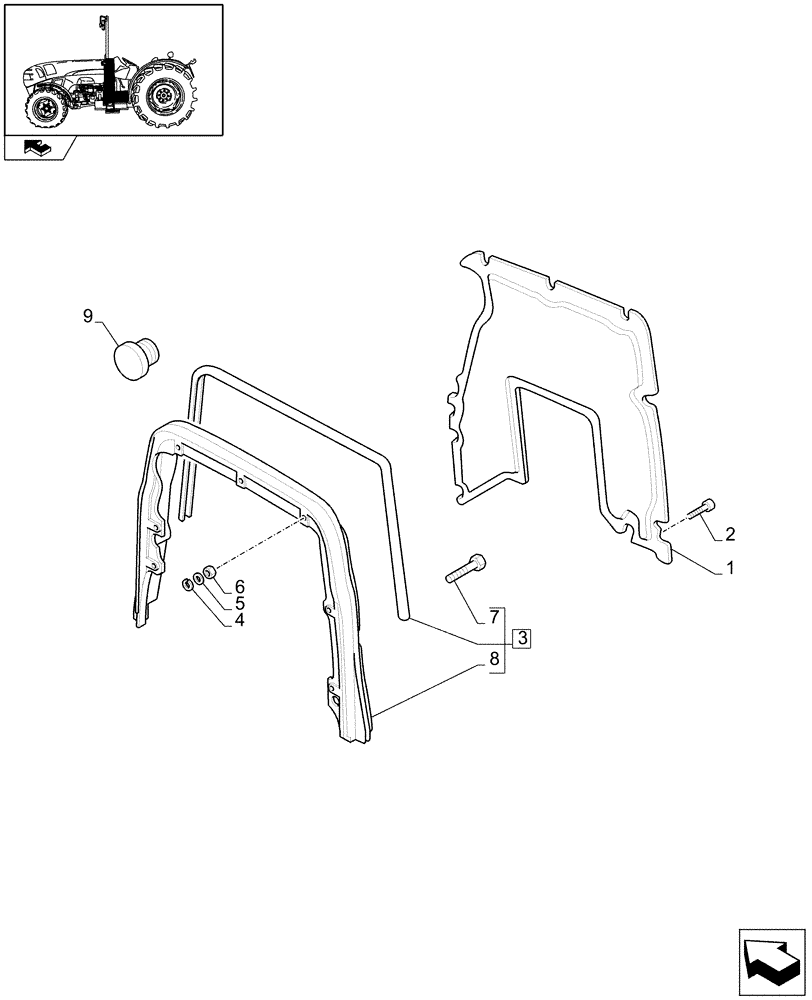

Запчасти Case IH FARMALL 105V (1.92.88/02) - HOOD, INSULATION (VAR. 332104 / 743538; VAR. 332183 - 332184 / 743986) (10) - OPERATORS PLATFORM/CAB

1

87578012

INSULATOR

1шт.

2

14778914

SCREW,Cross Rec Cheese Hd, M6 x 22mm, Cl 5.8

2шт.

3

87635707

SEAL

ASSY, Incl 7, 8

1шт.

4

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

5шт.

5

10516474

LOCK WASHER

5шт.

6

12646604

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

5шт.

7

15901601

SCREW,M4 x 16mm

2шт.

8

87525754

SEAL

1шт.

9

14507687

PLUG,20mm ID

3шт.
