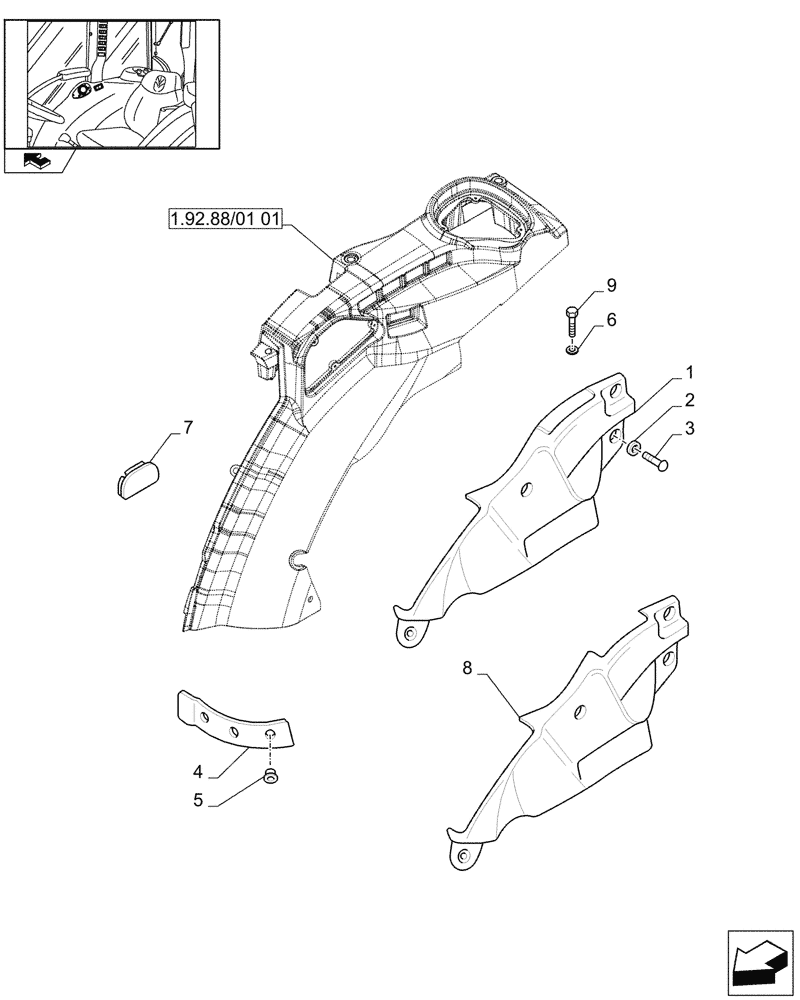

Запчасти Case IH FARMALL 105V (1.92.88/01[04]) - TRIM PANEL, MDC, L/ CAB (10) - OPERATORS PLATFORM/CAB

1

5190233

COVER

1шт.

2

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

3

13273824

SCREW,Pozidriv Pan Hd, M5 x 8mm, Cl 8.8, Full Thd

1шт.

4

5192869

PLATE

RH, 75N, 85N, 95N, 105N

1шт.

4

5192867

DOOR SILL MOULDING

RH, 75V, 85V, 95V, 105V

1шт.

4

5192870

DOOR SILL MOULDING

LH, 75N, 85N, 95N, 105N

1шт.

4

5192868

FOOT BOARD

LH, 75V, 85V, 95V, 105V

1шт.

5

44911688

PLUG,5mm ID x 18mm OD x 6mm Thk

1шт.

Qty 7 for Mechanical Draft Control; Qty 9 for Electronic Draft Control

1шт.

6

11195574

BELLEVILLE WASHER,M6 Bolt Size x 24mm OD x 1.5mm Thk

10шт.

7

44914720

SECTOR

1шт.

8

5190235

GUARD

1шт.

3 Remote Valves with 1 Flow Control, Var. 330390 - 332137 / Commercial Feature 743525;

1шт.

3 Remote Valves with 1 Flow Control, Var. 330391 - 332139 - 332140 - 333391 - 334391 / Commercial Feature 743526;

1шт.

3 Remote Valves with 1 Flow Control, Var. 331391 - 332145 - 332146 / Commercial Feature 743527.

1шт.

9

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

10шт.
