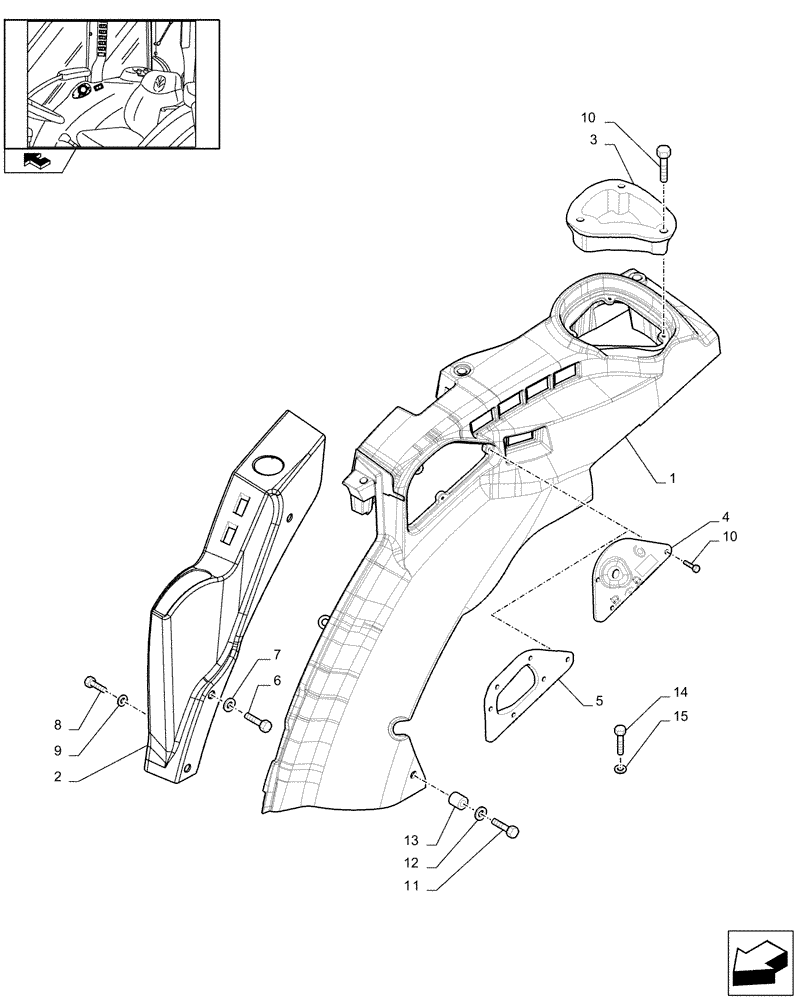

Запчасти Case IH FARMALL 105V (1.92.88/01[02]) - TRIM PANEL, RIGHT SIDE, W/ CAB (VAR. 332130 - 332131 - 332137 - 332138 / 743525; VAR. 332139 - 332140 - 332141 / 743526; VAR. 332145 - 332146 / 743527) (10) - OPERATORS PLATFORM/CAB

1

84525235

TRIM PANEL

75N, 85N, 95N, 105N

1шт.

1

84485424

TRIM PANEL

75V, 85V, 95V, 105V

1шт.

2

84482000

COVER

1шт.

3

84481999

CONTAINER

with Mechanical Draft Control

1шт.

4

47382173

PANEL

with Mechanical Draft Control

1шт.

Remotes with Electrohydraulic Mid Mount Valves, Var. 332130 - 332137 / Commercial Feature 743525;

1шт.

Remotes with Electrohydraulic Mid Mount Valves, Var. 332139-332140 / Commercial Feature 743526;

1шт.

Remotes with Electrohydraulic Mid Mount Valves, Var. 332145-332146 / Commercial Feature 743527.

1шт.

5

84481998

PANEL

with Electronic Draft Control

1шт.

Remotes with Electrohydraulic Mid Mount Valves, Var. 332131 - 332138 / Commercial Feature 743525;

1шт.

Remotes with Electrohydraulic Mid Mount Valves, Var. 332141 / Commercial Feature 743526.

1шт.

6

13276177

4шт.

7

12647678

WASHER,6.45mm ID x 16mm OD x 2mm Thk

4шт.

8

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

9

12625221

WASHER,8.15mm ID x 20mm OD x 1mm Thk

1шт.

10

14775214

SCREW,Cross Rec Cheese Hd, M4 x 8mm, Cl 5.8

6шт.

11

14778911

SCREW,Cross Rec Cheese Hd, M6 x 22mm, Cl 5.8

1шт.

12

14498821

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

13

84496163

SPACER,8mm ID x 12mm OD x 10mm L

1шт.

14

14064514

SCREW,Cheese Hd, M6 x 12mm, Cl 5.8

1шт.

15

14498821

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.
